Product Overview

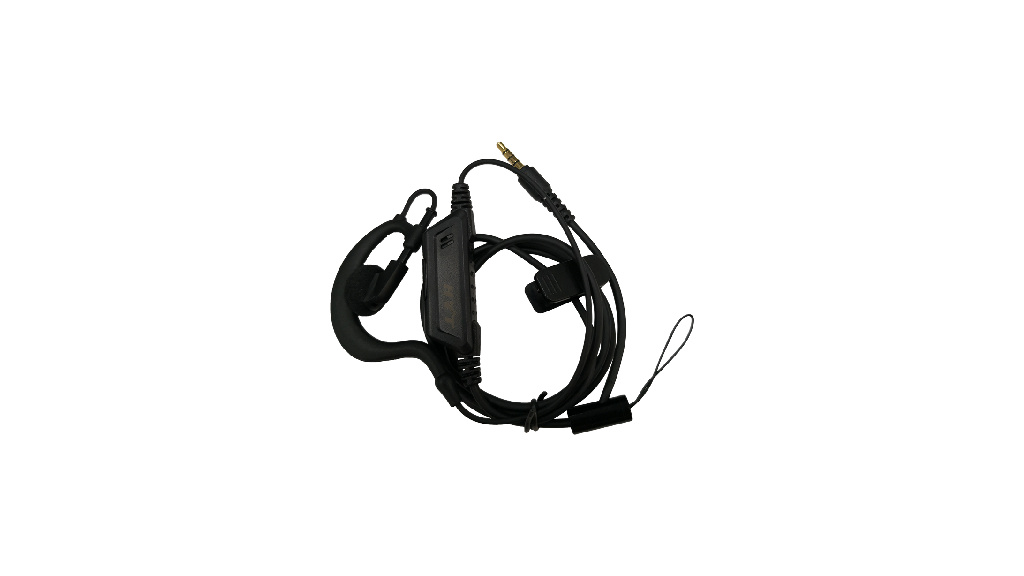

The Hytera EHS24 is an earset with a four-contact 3.5 mm plug, microphone and PTT.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHS24 |
| Weight | about 28 g |
| Color | black |
| PTT Key | available |
| VOX | none |
| Emergency Key | none |
| Microphone Sensitivity | -42±3 dB@1 kHz 3.0 V 2.2 kilohm |
| Speaker Power | 10 mW (max.) |
| Speaker Impedance | 32Ω±15%@1 kHz |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 85℃ |
| Connection (page description) | 3.5 mm, four-contact single plug |
Compatibility and Ordering
Confirm the host's contact wiring and audio support before ordering. A matching plug diameter does not establish compatibility; the listed 10 mW speaker figure is a maximum, not a rated continuous output.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHS24 configuration, host equipment and quantity required.
