Product Overview

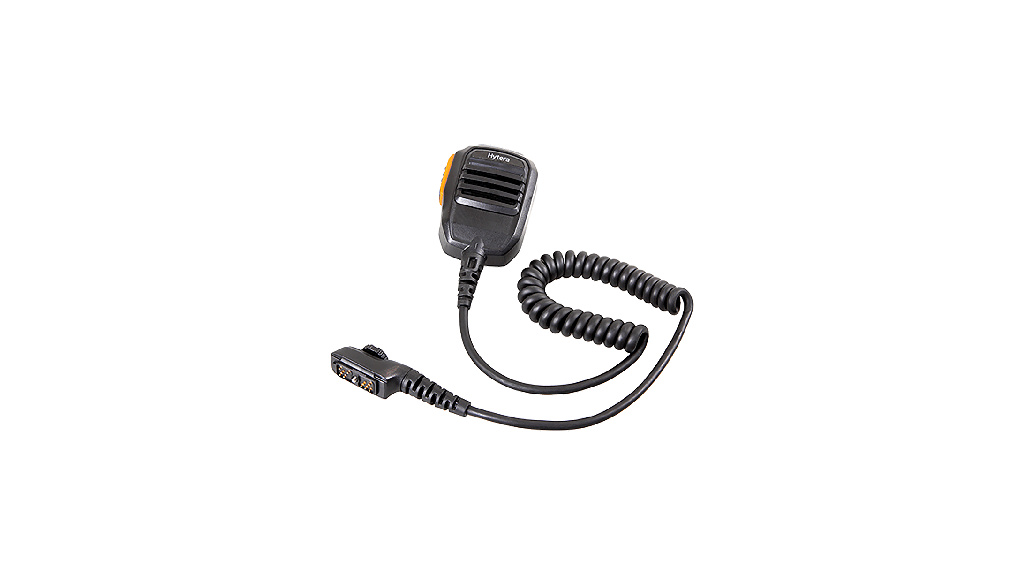

Hytera SM18N5 is a remote speaker microphone.
Key Features
- PTT Key: available
- Speaker Power: 1 W (rated); 1.5 W (max.)
- IP Rating: IP67
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM18N5 |
| Dimensions | 86.3* 62.1* 43.8mm |
| Weight | about 160 g |
| Color | black |
| PTT Key | available |
| Emergency Key | available |
| Microphone Sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker Power | 1 W (rated); 1.5 W (max.) |
| Speaker Impedance | 8 Ω±15% @ 1kHz |
| Manufacturer-listed speaker acoustic test value | 93±3 dB @ 1kHz 1 W/30 cm |
| IP Rating | IP67 |
| Operating Temperature | –30℃ to 70℃ |
| Storage Temperature | –40℃ to 85℃ |
| Listed radios | PT560H; PT580H Plus |
| Attachment | Adjustable clip |
Compatibility and Configuration
Confirm exact compatible equipment, connector and required intervening components. Listed models (not an exhaustive compatibility list): PT560H, PT580H-Plus.
Ordering Information
Confirm exact part number, connector, host variant and supplied components.
Request a Quote
Contact MARS SC about Hytera SM18N5 and your equipment configuration.
