Product Overview

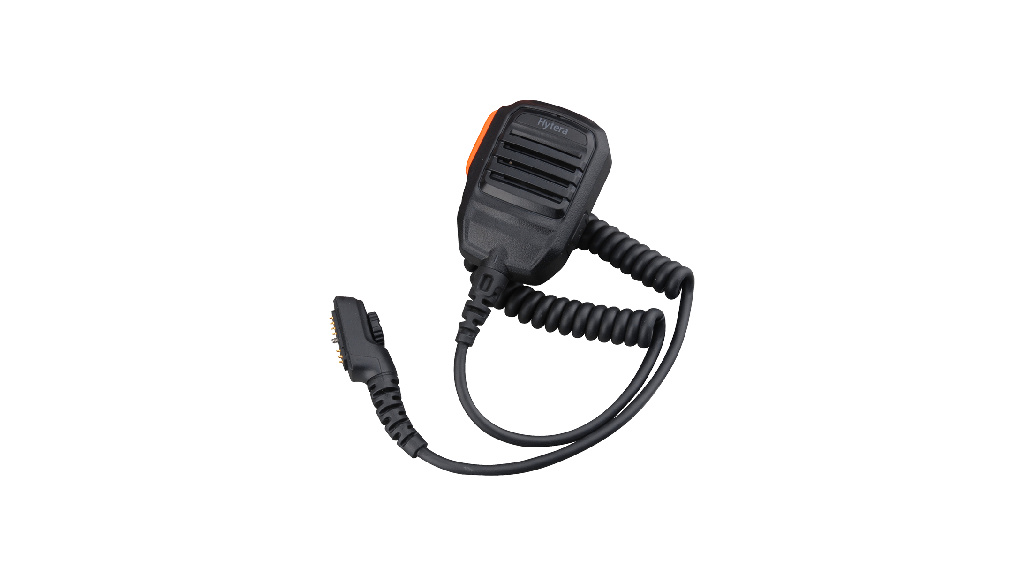

Hytera SM18N3 is a remote speaker microphone.
Key Features
- PTT key: available
- Radio connector: 16-pin connector
- Speaker power: 1 W (rated),1.5 W (max.)
- Ingress protection: IP54
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM18N3 |
| Dimensions (H×W×D) mm | 86.3 x 62.1 x 43.8 |
| Weight | about 160 g |
| Colour | black |
| PTT key | available |
| Emergency key | available |
| Radio connector | 16-pin connector |
| Earpiece jack | none |
| Microphone sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker power | 1 W (rated),1.5 W (max.) |
| Speaker impedance | 8 Ω ±15% @ 1.5kHz |
| Manufacturer-listed speaker acoustic test value | 93±4dB @ 1 kHz 1 W/30 cm |
| Ingress protection | IP54 |
| Operating temperature | –30℃ to 70℃ |
| Storage temperature | –40℃ to 85℃ |
| Applicable radios | PT560H and PT580H Plus |
| Attachment | Adjustable clip |
Compatibility and Configuration
Confirm exact compatible equipment, connector and required intervening components. Listed models (not an exhaustive compatibility list): PT560H, PT580H-Plus.
Ordering Information
Confirm exact part number, connector, host variant and supplied components.
Request a Quote
Contact MARS SC about Hytera SM18N3 and your equipment configuration.
