Product Overview

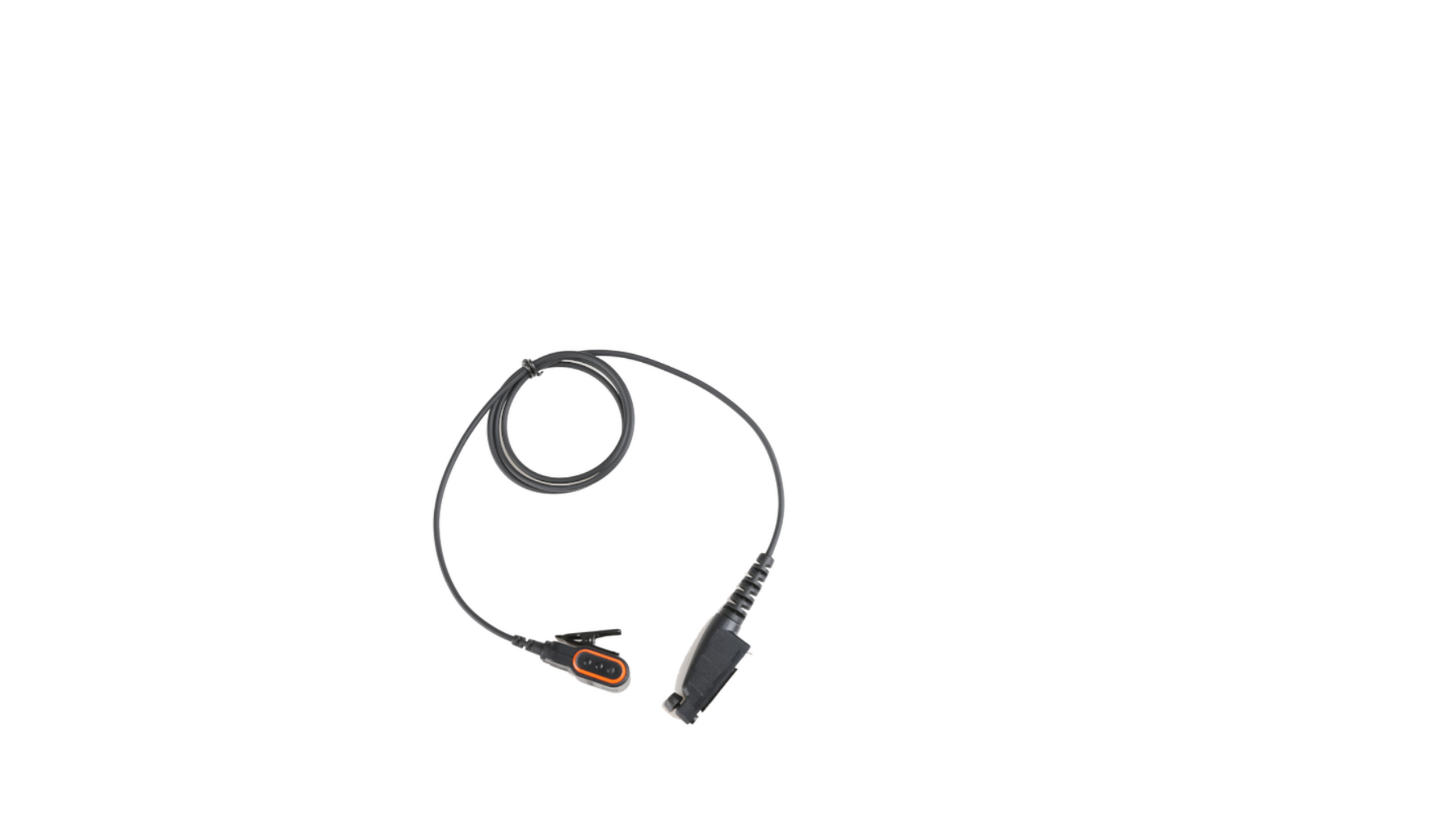

Hytera ACN-07 is a PTT and microphone controller for PT310 and PT350, with an 11-pin radio connector and a 3.5 mm earpiece socket. The earphone is not included.
Key Features
- PTT Key: available
- VOX: none
- Radio connector: 11-pin
- Earpiece connector: 3.5 mm jack socket
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | ACN-07 |
| Weight | about 40 g |
| Color | black |
| PTT Key | available |
| PTT cycles | ≥ 100,000 |
| VOX | none |
| Emergency Key | none |
| Radio connector | 11-pin |
| Earpiece connector | 3.5 mm jack socket |
| Microphone sensitivity | -43 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Microphone impedance | ≤ 2.2 kΩ @ 1 kHz |
| Operating voltage | 1 – 10V DC |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -40°C to 75°C |
| Suitable radios | PT310, PT350 |
| Applicable Hytera earbuds with 3.5 mm jack plug | EA-01, ES-01, ES-02, EH-01, EH-02 or EHS20 |
| Earpiece supply | Earphone not included |
Compatibility and Configuration
Confirm the exact compatible radio and accessory combination before ordering. Individually named catalogue models: PT310, PT350.
Ordering Information
Confirm the exact part number, radio variant, connector pinout, required PTT/VOX features and supplied components before ordering. A separate compatible earpiece is required.
