Product Overview

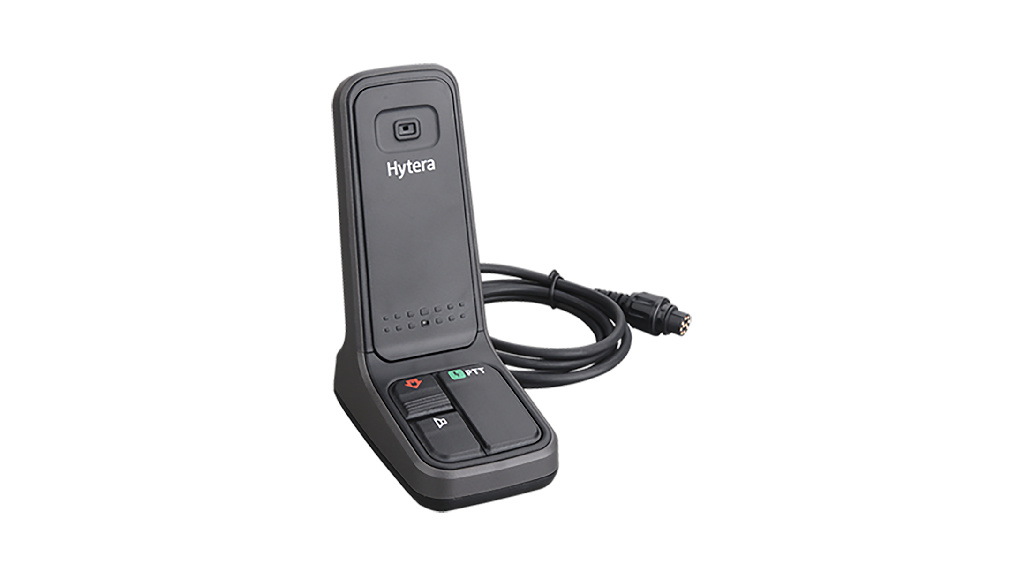

Hytera SM10A1: Desktop microphone with large PTT — for MD7, HM6, HM7 series, MT680 Plus, RD985, RD985S, HR1065.
Key Features
- Dimensions: 107* 65* 148.6mm
- Weight: about 170 g
- Color: black
- PTT Key: available
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM10A1 |
| Dimensions | 107* 65* 148.6mm |
| Weight | about 170 g |
| Color | black |
| PTT Key | available |
| Microphone Sensitivity | –40±2 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Operating Temperature | –30℃ to 70℃ |
| Storage Temperature | –40℃ to 85℃ |
| Controls | Large PTT button and lockable monitor key |
| Listed equipment | MD7; HM6; HM7 series; MT680 Plus; RD985; RD985S; HR1065; confirm exact variant |
Compatibility and Configuration
Listed equipment (not an exhaustive compatibility list): HR1065, MT680 Plus, RD985, RD985S, RD985S 100W. Confirm radio model, connector, PTT functions and environmental requirements. The microphone rating does not change the radio protection rating.
Ordering Information
Confirm radio model, connector, PTT functions and environmental requirements. The microphone rating does not change the radio protection rating.
Request a Quote
Contact MARS SC about SM10A1. Provide the installation details and required quantity.
