Product Overview

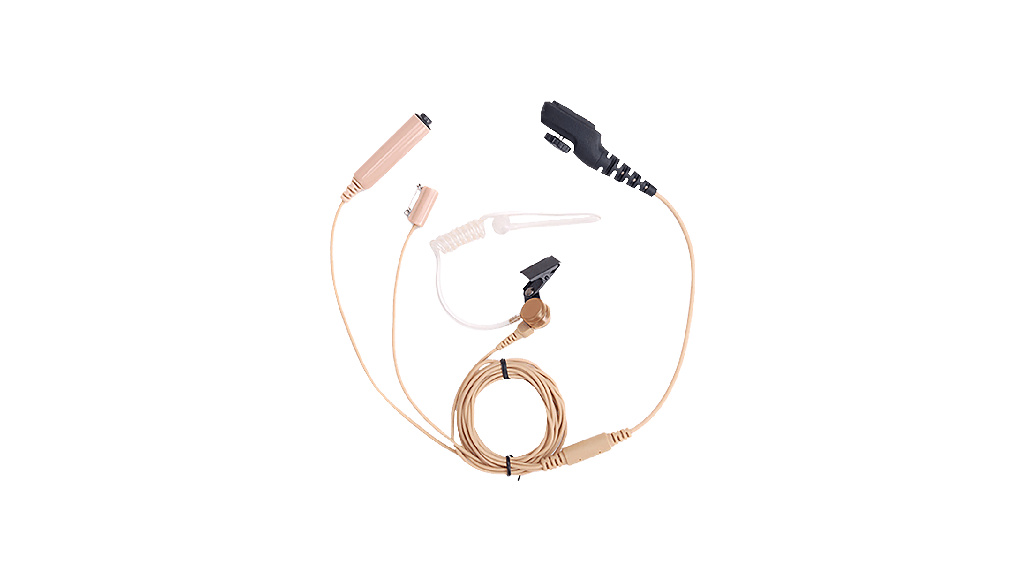

The Hytera EAN17 is a beige three-wire surveillance earpiece with separate microphone and PTT, a clip and a transparent acoustic tube.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EAN17 |
| Weight | about 50 g |
| Color | beige |
| PTT Key | available |
| VOX | none |
| Emergency Key | none |
| Microphone Sensitivity | –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker Power | 10 mW (rated); 300 mW (max.) |
| Speaker Impedance | 220 Ω±15% @ 1 kHz |
| IP Rating | IP54 |
| Operating Temperature | –20℃ to 60℃ |
| Storage Temperature | –20℃ to 80℃ |
| Construction | Beige three-wire earpiece; separate PTT and microphone; transparent acoustic tube with clip |
| Listed radio families | PD7; PD985; PT5 series; confirm exact variant |
Compatibility and Ordering
Specify the exact PD7, PD985 or PT5 radio variant and connector. Confirm cable routing and tube supply; the page lists neither VOX nor an emergency key.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EAN17 configuration, host equipment and quantity required.
