Product Overview

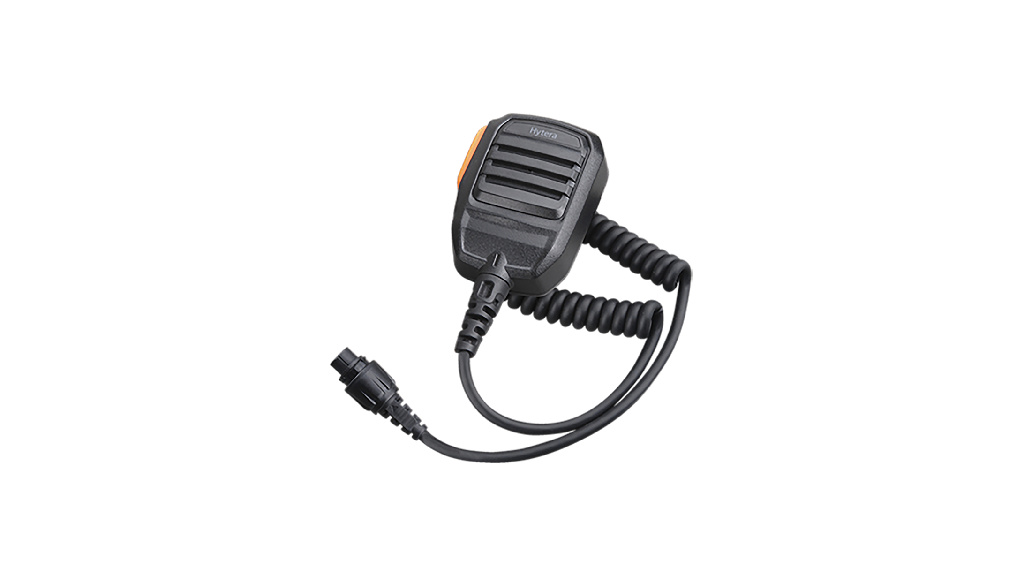

Hytera SM16A1: Handheld Microphone (IP54) — for MD7 and MT6 series, RD985, RD985S, HR1065, HM685, HM785, MNC360.
Key Features
- Dimensions: 82.0* 56.0* 32.2mm
- Weight: about 120 g
- Color: black
- PTT Key: available
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM16A1 |
| Dimensions | 82.0* 56.0* 32.2mm |
| Weight | about 120 g |
| Color | black |
| PTT Key | available |
| Microphone Sensitivity | –21±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| IP Rating | IP54 |
| Operating Temperature | –30℃ to 65℃ |
| Storage Temperature | –40℃ to 85℃ |
| Connector (page description) | 10-pin aviation connector |
| Listed equipment | MD7 series; MT6 series; RD985; RD985S; HR1065; HM685; HM785; MNC360; confirm exact variant |
Compatibility and Configuration
Listed equipment (not an exhaustive compatibility list): HM685, HM785, HR1065, MNC360, RD985, RD985S, RD985S 100W. Confirm radio model, connector, PTT functions and environmental requirements. The microphone rating does not change the radio protection rating.
Ordering Information
Confirm radio model, connector, PTT functions and environmental requirements. The microphone rating does not change the radio protection rating.
Request a Quote
Contact MARS SC about SM16A1. Provide the installation details and required quantity.
