Product Overview

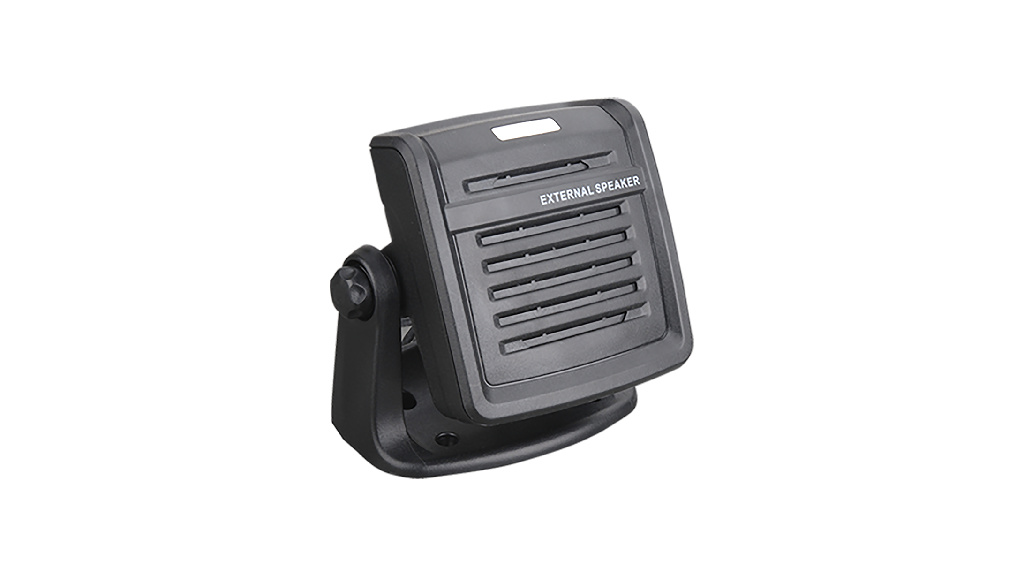

Hytera SM09S2 is a 15 w external speaker.
Key Features
- Speaker Power: 15 W (rated); 20 W (max.)
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM09S2 |
| Dimensions | 155.6* 92.5* 140.2mm |
| Weight | about 774g |
| Color | black |
| Speaker Power | 15 W (rated); 20 W (max.) |
| Speaker Impedance | 8 Ω±15% @ 500 Hz |
| Manufacturer-listed speaker acoustic test value | 88±2 dB @ 800 Hz (1 W/1 m) @ 600, 700, 800, 900 Hz AVE |
| Operating Temperature | –30℃ to 70℃ |
| Storage Temperature | –40℃ to 85℃ |
| Listed radios | MD785i; MT680 Plus; HM785 |
| Required cable kit | POA117; confirm supplied configuration |
Compatibility and Configuration
Confirm exact compatible equipment, connector and required intervening components. Listed models (not an exhaustive compatibility list): MD785i, MT680 Plus, HM785. Compatibility is conditional on the specified cable kit or car kit; not a direct standalone radio connection.
Ordering Information
Confirm exact part number, connector, host variant and supplied components. Manufacturer specifies POA117 for MD785i, MT680 Plus and HM785. Connector not given; do not copy SM09D1 connector.
