Product Overview

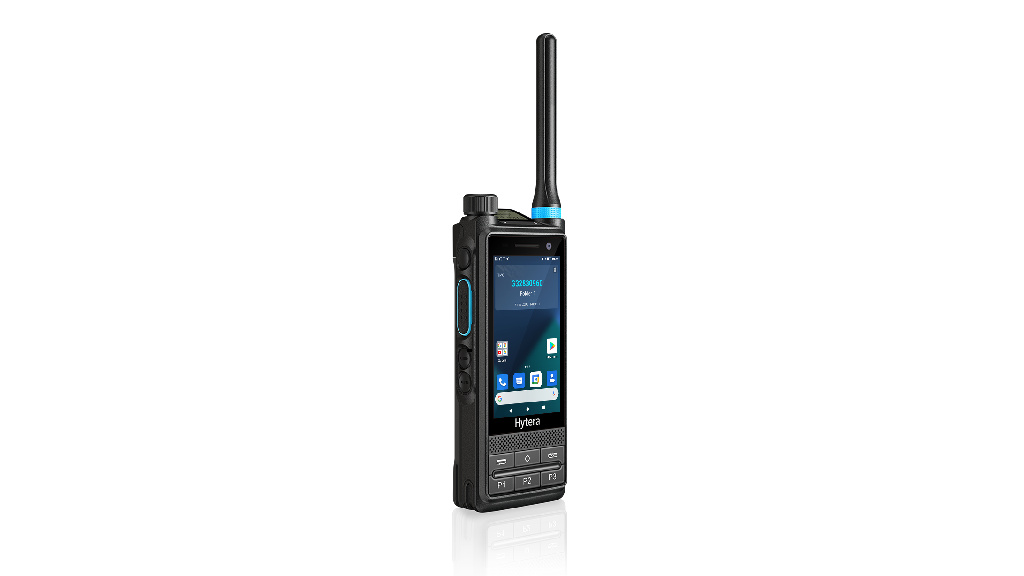

The Hytera PTC680 is an Android 10 TETRA/LTE multi-mode radio with a 3.6-inch touchscreen, a separate top display and a 13-pin accessory interface.
Key Features
- BT: V4.2，BDR/EDR/BLE
- Operating System: Android 10.0
- Display: Top Screen:0.92” 128×88 Color: black & white; Main Screen: 3.6" 1280×720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus
- Battery: 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional)
- Dust & Water Protection: IEC60529- IP68 (2m, 4h), IEC60529- IP66
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | PTC680 |
| Narrow Band | 350-475MHz |
| LTE | 3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41 |
| WCDMA | B1/B2/B4/B5/B8 |
| GSM | 850/900/1800/1900 MHz |
| WLAN | 802.11 a/b/g/n/ac，2.4 GHz/5 GHz |
| NFC | 13.56 MHz |
| BT | V4.2，BDR/EDR/BLE |
| Positioning | GPS/BDS/GLONASS/Galileo/QZSS/A-GPS; Position performance for open zone： TTFF（Cold boot）< 1minute; Horizontal accuracy < 5m (95% probable at -130dBm) |
| Dimensions(H×W×D) mm | 140 mm x 60 mm x 29.1 mm |
| Weight | 325±5 g |
| Operating System | Android 10.0 |
| Peripheral Interface | 13PIN Accessory/Charging Port |
| Display | Top Screen:0.92” 128×88 Color: black & white; Main Screen: 3.6" 1280×720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus |
| Card Slots | 2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband |
| Camera | Front: 8MP, fixed focus; Rear: 13MP, auto focus |
| Battery | 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional) |
| TX Power | 3W(Class 3) ; 1.8W(Class 3L) ; 1W(Class 4) |
| Dust & Water Protection | IEC60529- IP68 (2m, 4h), IEC60529- IP66 |
| Page version scope | Manufacturer description specifies PTC680 A10; confirm exact delivered variant |
| TETRA channel spacing | 25 kHz |
Functions and Deployment
- The official product description specifically identifies the PTC680 A10 configuration.
- Hytera describes Smart MDM management and Android APIs for integrating supported PMR functions.
Accessories and Configuration
Specify deployment country, regional hardware, operator/SIM service, compatible PoC or MCS platform and required licences. Confirm provisioning and application support; service subscriptions are not assumed included. Confirm narrowband frequency, protocol and network programming separately from cellular service. Manufacturer-listed standard accessory references: BP2402, CH20L13, BC39, RO04, AN0375H17. Final kit contents depend on the supplied version.
Ordering Information
Confirm the exact A10 hardware/software version, TETRA network and band, broadband service, encryption configuration and approved accessory list. Specify required Smart MDM and application integration separately; do not extend A10 features to every PTC680 variant.
Request a Quote
Contact MARS SC with the deployment country, radio system and required PTC680 configuration.
