Product Overview

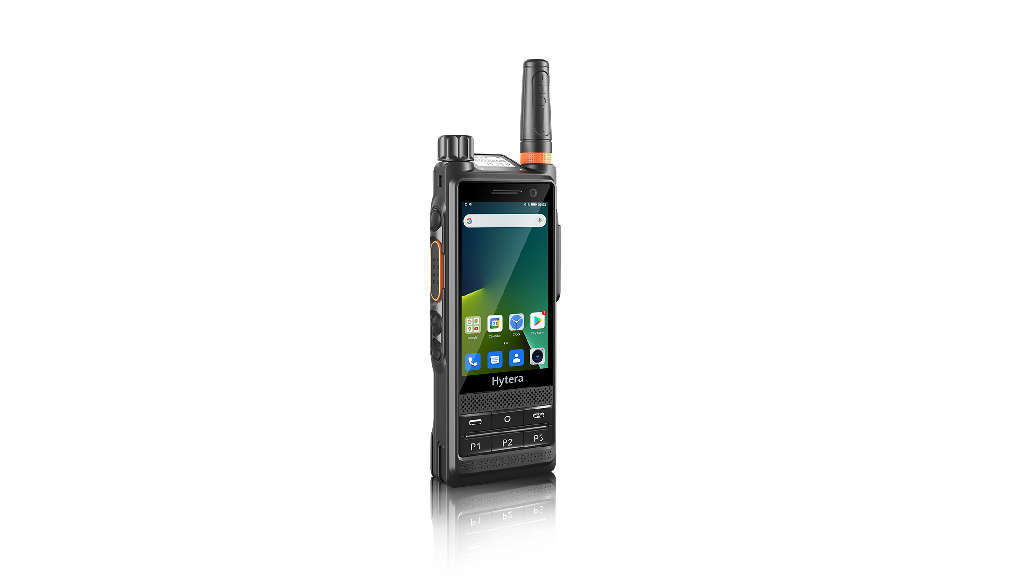

Hytera PDM680 is a rugged MCS radio combining broadband services with DMR Tier II direct communications. It provides front and rear cameras, an Android platform, USB Type-C and a 13-pin accessory interface for supported operational workflows.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | PDM680 |
| WCDMA | B1/ B2/ B4/ B5/ B8 |
| GSM | 850/ 900/ 1800/ 1900MHz |
| WLAN | IEEE 802.11 a/ b/ g/ n/ ac, 2.4 GHz/ 5 GHz |
| NFC (optional; confirm version) | 13.56MHz |
| Positioning | GPS/ BDS/ GLONASS/ Galileo/ QZSS/ A-GPS/ NLP; In open areas:; Time to first fix (cold start) < 60s; Time to first fix (hot start) < 10s; Horizontal accuracy ≤ 2 m, > 5 SVs, –130 dBm, CEP (50%) |
| Dimensions(H× W× D) mm | 145.7 mm x 60 mm x 29.1 mm (with standard battery); 145.7 mm x 60 mm x 33.1 mm (with optional battery) |
| Weight | 328±5 g (with standard battery and antenna); 373±5 g (with optional battery and antenna) |
| Operating System | Android 10.0 |
| Memory | RAM: 4 GB; ROM: 64 GB eMMC; Micro SD card: 256 GB (max.) |
| Peripheral Interface | USB Type-C port, USB2.0; 13-Pin accessory interface |
| Camera | Front: 8MP Rear: 16MP |
| Operating Voltage | 7.7V(Rated) |
| Battery | Standard:2400 mAh Li-polymer; Optional: 4000 mAh Li-polymer |
| TX Power | 1W/ 4W |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃~ +80℃ |
| Dust & Water Protection | IEC60529-IP68 |
| Narrowband operation | DMR Tier II / device-to-device communication; configuration-dependent |
| MCS services | MCPTT, MCVideo and MCData through compatible HyTalk MC deployment |
Request a Quote
Please provide the exact model, quantity, host equipment and required configuration. Compatibility and supplied components must match the quoted configuration.
