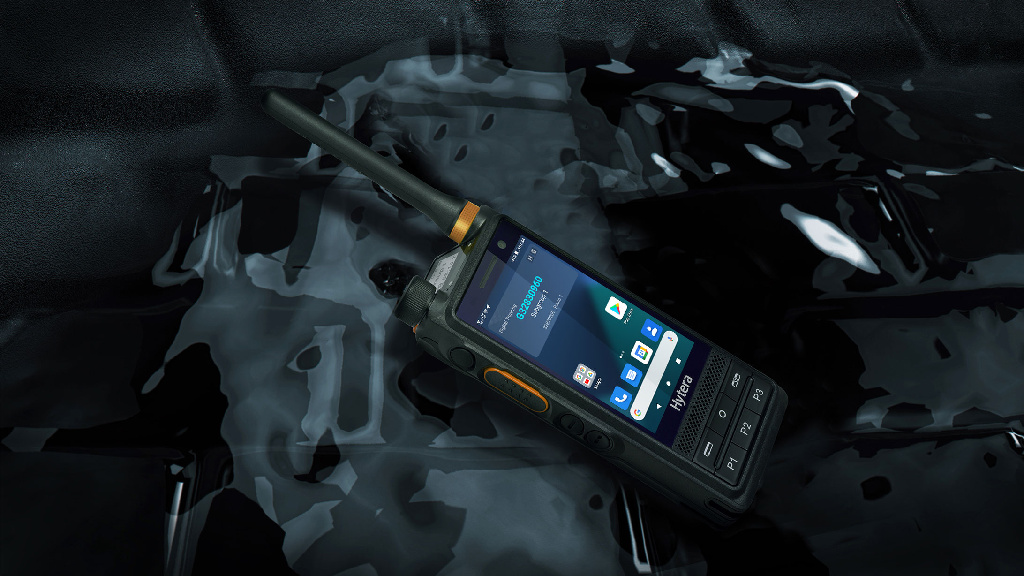

Hytera PDC680 DMR/LTE Dual-mode Radio

Product Overview

The Hytera PDC680 is an Android 10 DMR/LTE dual-mode radio with a 3.6-inch main touchscreen and a separate top display.

Key Features

Operating System: Android 10.0
Display: Top Screen:0.92” Color: black & white; Main Screen: 3.6" , Color depth: 24bit, Touch Screen, Gloves Proofed
Battery: 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional)
Dust & Water Protection: IEC60529- IP68 (2m, 4h), IEC60529- IP66

Key Specifications

Manufacturer	Hytera
Model	PDC680
Narrow Band	UHF:340~470 MHz;VHF:136-174MHz
LTE	3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41
WCDMA	B1/B2/B4/B5/B8
GSM	850/900/1800/1900MHz
WLAN	802.11 a/b/g/n/ac, 2.4GHz/5GHz
NFC	13.56MHz
Positioning	GPS/BDS/GLONASS/Galileo/QZSS/A-GPS
Dimensions (H x W x D)	140 mm x 60 mm x 29.1 mm
Operating System	Android 10.0
Peripheral Interface	13PIN Accessory/Charging Port
Display	Top Screen:0.92” Color: black & white; Main Screen: 3.6" , Color depth: 24bit, Touch Screen, Gloves Proofed
Card Slots	2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband
Camera	Front: 8MP; Rear: 13MP
Operating Voltage	7.7V(Rated)
Battery	2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional)
TX Power	UHF: 1W/4W;VHF: 1W/5W
Dust & Water Protection	IEC60529- IP68 (2m, 4h), IEC60529- IP66
Narrowband channel spacing	12.5 / 20 / 25 kHz; select exact hardware and configuration

Accessories and Configuration

Specify deployment country, regional hardware, operator/SIM service, compatible PoC or MCS platform and required licences. Confirm provisioning and application support; service subscriptions are not assumed included. Confirm narrowband frequency, protocol and network programming separately from cellular service. Manufacturer-listed standard accessory references: CH20L13, BP2402, BC39, RO03, AN0405H18, AN0435H24, AN0375H20, AN0435H25, AN0873H11, AN0485H18, AN0375H21, AN0435H26, POA195. Final kit contents depend on the supplied version.
