Product Overview

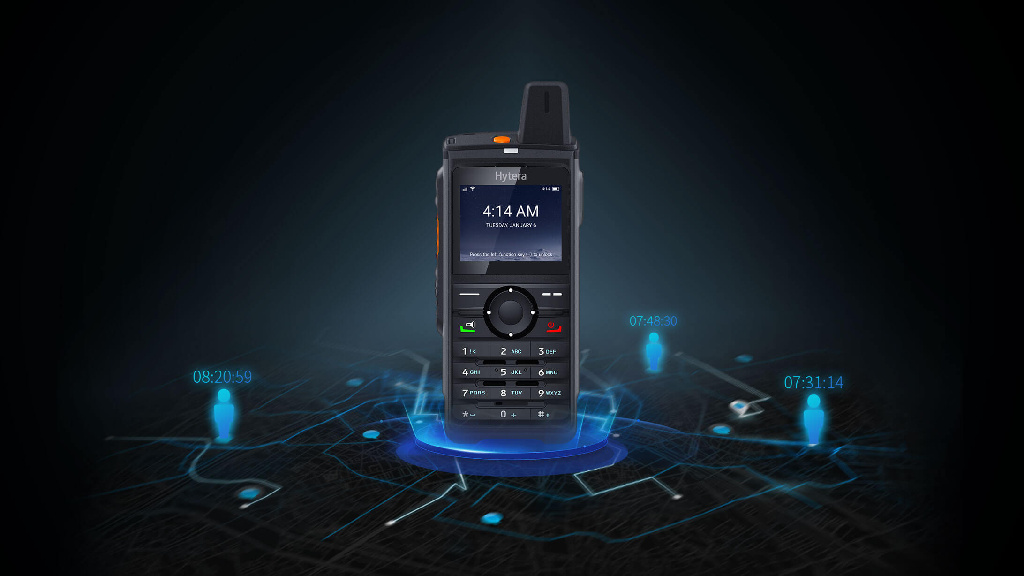

The Hytera PNC380 is an Android 7.1 PoC radio with a 2-inch display, a 5 MP rear camera and a 4,000 mAh battery. NFC is an optional PNC380 Pro feature.
Key Features
- BT: BT 4.1
- Operating System: Android 7.1
- Display: 2.0〃320*240
- Battery: 4000 mAh
- Dust & Water Protection: IP67
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | PNC380 |
| LTE | Asia,Europe,Middle East and Africa: TDD-LTE: B38/B39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B27/B28; American: TDD-LTE: B38/B41; FDD-LTE: B2/B3/B4/B5/B7/B12/B13/B17/B26/B28; |
| WCDMA | Asia,Europe,Middle East and Africa:B1/B3/B5/B8; American:B2/B4/B5 |
| GSM | Asia,Europe,Middle East and Africa:850/900/1800/1900; American:850/900/1800/1900 |
| WLAN | 2.4GHz and 5GHz |
| NFC | PNC380 Pro：Supported(optional) |
| BT | BT 4.1 |
| Positioning | GPS/GLONASS/BDS/AGPS |
| Dimensions(H×W×D) mm | 145.1x 60 X 26.1mm |
| Weight | 208g(with battery and antenna) |
| Operating System | Android 7.1 |
| Memory | RAM：1GB,ROM：8GB, Micro SD/TF card:Maximum 32G |
| Peripheral Interface | Micro USB 2.0(5V/2A); 3.5 mm audio jack |
| Display | 2.0〃320*240 |
| Card Slots | 1 Nano SIM card slot and 1 Micro SD card slot |
| Camera | 5 MP rear camera; Video recording：720 P (1280×720) 30 FPS; Flash：Supported |
| Operating Voltage | 3.85V |
| Battery | 4000 mAh |
| Output | 32 mm, circular, rated power: 1 W |
| Dust & Water Protection | IP67 |
| Audio input | Two microphones with dual-microphone noise reduction |
Functions and Deployment
- Supports multimedia workflows such as location sharing, messaging and configured live video to a dispatcher.
- An emergency button can initiate a configured call to the dispatcher or supervisor.
Accessories and Configuration
Specify deployment country, regional hardware, operator/SIM service, compatible PoC or MCS platform and required licences. Confirm provisioning and application support; service subscriptions are not assumed included. NFC is an optional PNC380 Pro feature, not a standard PNC380 inclusion. Manufacturer-listed standard accessory references: PS2024, RO01, BC44, PC80. Final kit contents depend on the supplied version.
Ordering Information
Confirm PNC380 versus PNC380 Pro, regional cellular hardware, camera and optional NFC requirements. Specify SIM/operator and dispatch platform, enabled video services and current software support for the quoted unit.
Request a Quote
Contact MARS SC with the deployment country, radio system and required PNC380 configuration.
