Product Overview

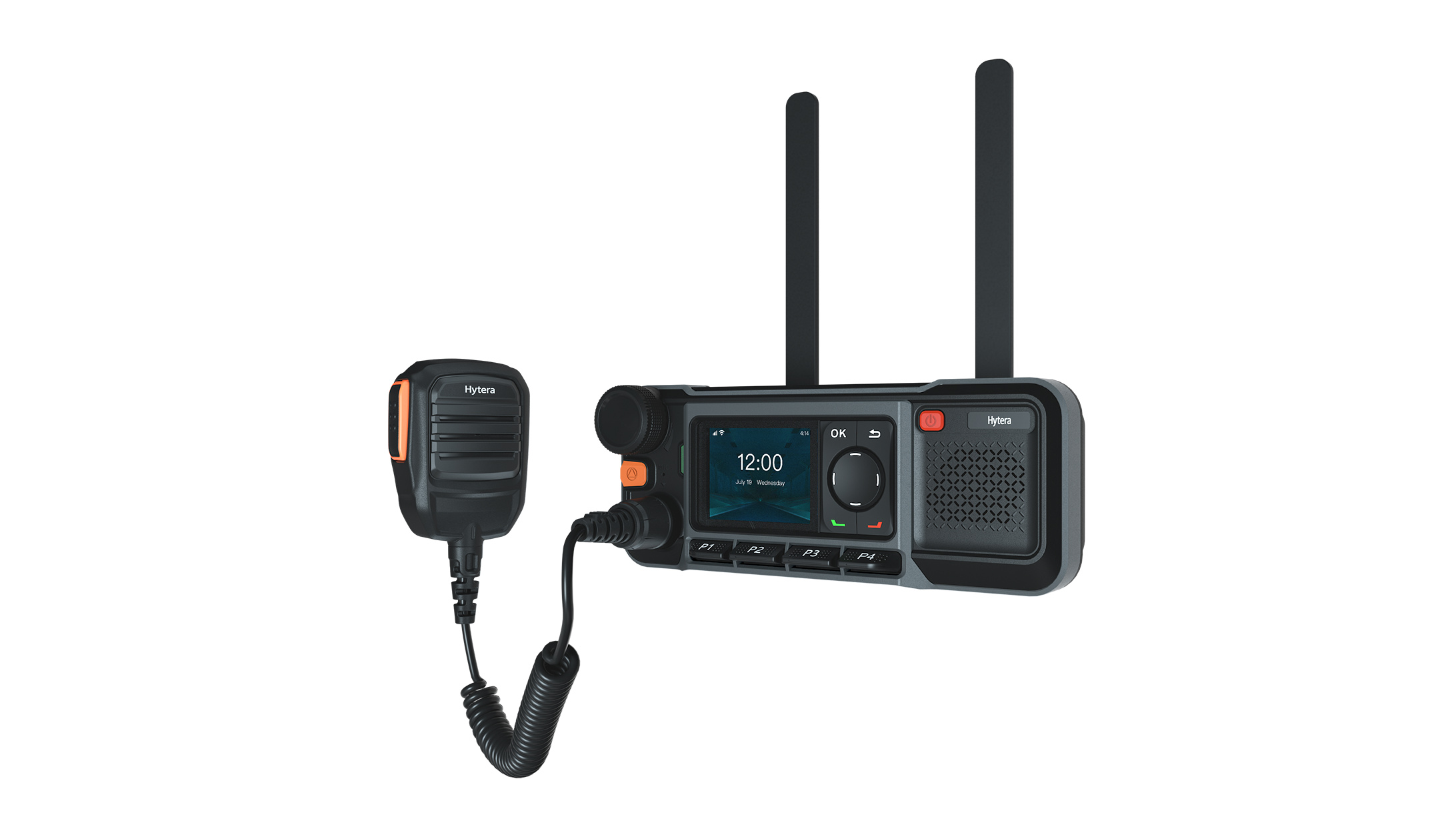

The Hytera MNC360 is an Android 7.1 PoC mobile radio for vehicle installation, with a 2-inch display, two Micro-SIM slots and a 13.6 V DC supply.
Key Features
- Operating System: Android 7.1
- Display: 2.0 inches
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | MNC360 |
| LTE | TDD-LTE:B38/B39/B40/B41(2496-2690MHz); FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B12/B13/17/B20/B26/B28 |
| WCDMA | B1/B2/B3/B4/B5/B8 |
| GSM | 850/900/1800/1900MHz |
| WLAN | 2.4GHz,802.11 b/g/n |
| NFC | optional |
| Positioning | GPS/GLONASS/BDS/AGPS |
| Dimensions (H x W x D)mm | 170mm*66mm*39.3mm |
| Weight | About 300g |
| Operating System | Android 7.1 |
| Memory | 1GB RAM+8 GB ROM |
| Peripheral Interface | Micro USB 2.0;3.5 mm audio jackTwo LTE antenna portsGPS antenna connectorPower inlet10-pin aviation port |
| Display | 2.0 inches |
| Card Slots | 2*Micro-SIM |
| Operating Voltage | 13.6±15%V DC |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Motion sensor | Three-axis acceleration sensor |
Functions and Deployment
- A manual network switch and two external LTE antenna connections support in-vehicle communications.
- Android APIs support integration of suitable third-party applications; confirm the required application and supported version.
Accessories and Configuration
Specify deployment country, regional hardware, operator/SIM service, compatible PoC or MCS platform and required licences. Confirm provisioning and application support; service subscriptions are not assumed included. Manufacturer-listed standard accessory references: SM16A1, GPS04, PWC34, PC157, BRK33. Final kit contents depend on the supplied version.
Ordering Information
Provide the deployment region, mobile operator and SIM plan, PoC platform, vehicle supply and antenna installation details. Confirm current application support for the listed Android 7.1 configuration and the exact accessory kit.
Request a Quote
Contact MARS SC with the deployment country, radio system and required MNC360 configuration.
