Product Overview

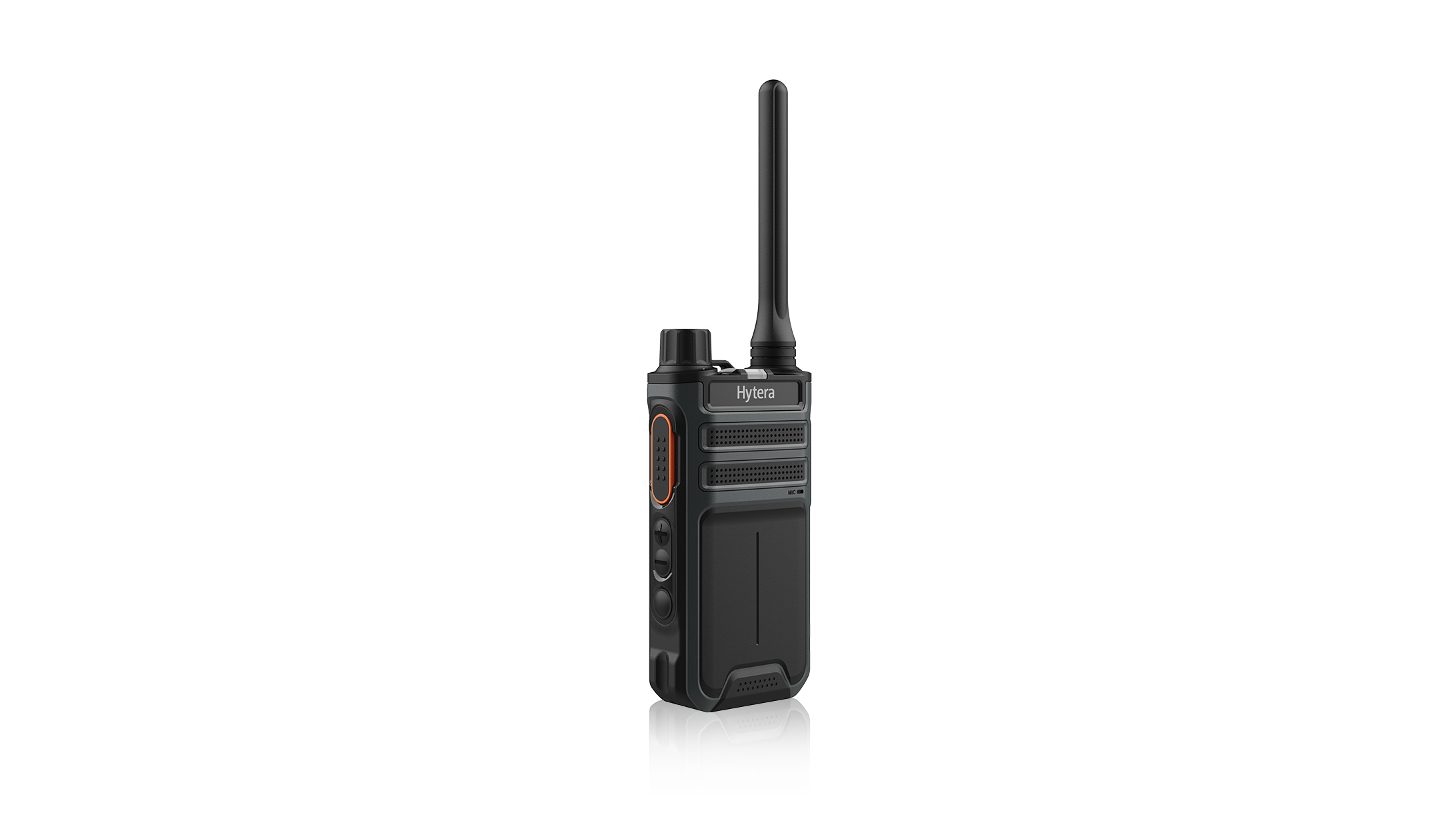

Hytera AP515LF is an analogue PMR446 handheld radio with a 4000 mAh battery and USB Type-C charging. The EU version is listed for 446.0-446.2 MHz, 0.5 W RF output and IP54 ingress protection.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | AP515 LF |
| Frequency Range | 446.0 – 446.2 MHz |
| Supported operating modes | Analogue PMR446 |
| Channels & zones | Channel capacity: 32 Zone capacity: 2 Channels per zone: 16 |
| Channel Spacing | 12.5 kHz |
| Operating Voltage | 3.7 V (rated) |
| Battery | 4000 mAh 3.7 V |
| Battery Life (5/5/90 Duty Cycle, High TX Power) | 25h |
| Dimensions (H x W x D) | 105 x 55 x 29.5mm |
| Weight (with antenna & battery) | 200g |
| RF Power Output | UHF: 0.5W |
| Operating Temperature | -30℃ to +60℃ (-30℃* Radio only – Battery -20℃) |
| Storage Temperature | -40℃ to +85℃ |
| Dust and Water Intrusion | IEC 60529 IP54 |
| Charging interface (page description) | USB Type-C |
| Audio processing | Noise-reduction processing described by manufacturer |
Request a Quote
Contact MARS SC for pricing and availability. Please include the model and quantity in your enquiry.
