Product Overview

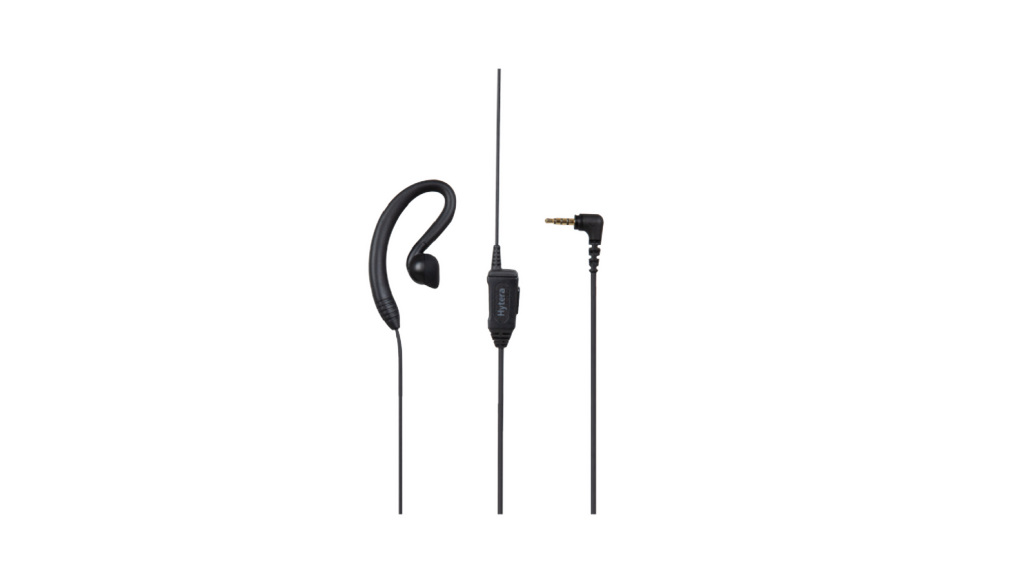

The Hytera EHS31 is a C-style earset with in-line microphone, PTT and a 3.5 mm plug for PNC360, PNC380, PNC370SE and PNC360S.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHS31 |
| Weight | about 27 g |
| Colour | black |
| PTT key | available |
| VOX | none |
| Emergency key | none |
| Connector | 3.5 mm jack plug |
| Microphone Sensitivity | -42 ±3 dB @1 kHz 2.0V, 2.2 kOhm, 0 dB=1 V/Pa |
| Speaker power | 10 mW (rated); 20 mW (max.) |
| Speaker impedance | 32 Ω ±15% @1 kHz |
| Operating temperature | -30°C to 65°C |
| Storage temperature | -40°C to 75°C |
| Applicable devices | PNC360, PNC380, PNC370SE, PNC360S |
Compatibility and Ordering
Specify the exact PNC model and connector arrangement. The page lists no VOX or emergency key; do not infer weather protection from the radio's rating.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHS31 configuration, host equipment and quantity required.
