Product Overview

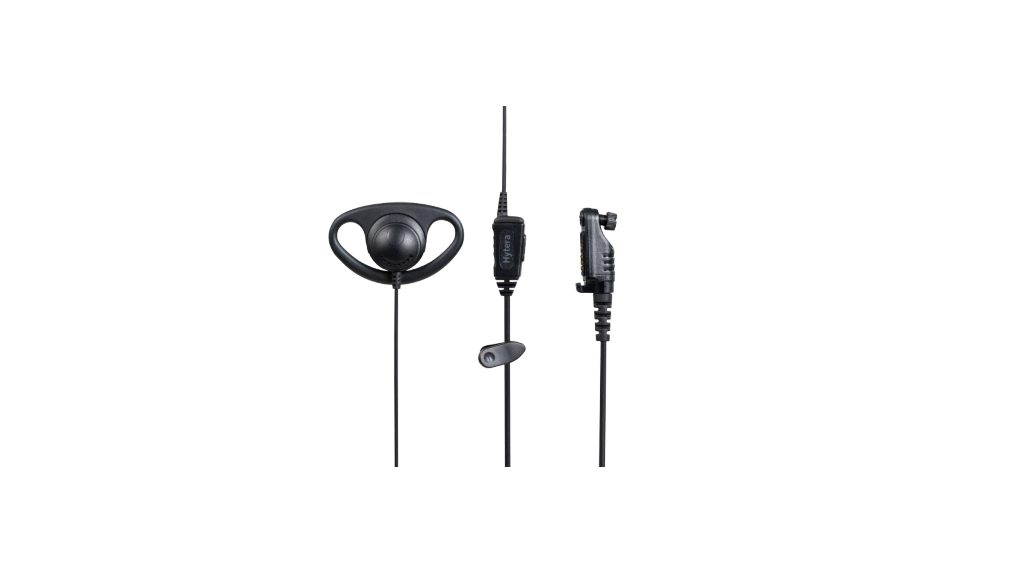

Hytera EHN40-P is a d-earset with inline microphone and PTT.
Key Features
- PTT key: available
- VOX: available in conjunction with the radio's VOX function
- Radio connector: 13-pin flat connector
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHN40-P |
| Weight | about 40g |
| Colour | black |
| PTT key | available |
| PTT cycles | ≥ 100,000 |
| VOX | available in conjunction with the radio's VOX function |
| Emergency Key | none |
| Radio connector | 13-pin flat connector |
| Microphone sensitivity | -40dB ±3dB (1kHz @1Pa) |
| Speaker power | 50 mW (rated) 80 mW (max.) |
| Speaker impedance | 150 Ω ±15% @1kHz |
| Speaker sensitivity | 108 ±4dB @1kHz at 0.77V |
| Operating temperature | –30℃ to 65℃ |
| Storage temperature | –40℃ to 75℃ |
| Suitable radios | HP505, HP565, HP605, HP685 |
| Accessory identification | Microchip protection for original Hytera verification |
Compatibility and Configuration
Manufacturer-listed equipment/configuration: HP505, HP565, HP605, HP685. Listed models (not an exhaustive compatibility list): HP505, HP565, HP605, HP685.
Ordering Information
Confirm the exact part number, host variant, connector pinout, software/firmware support, required PTT/VOX functions and supplied components.
