Product Overview

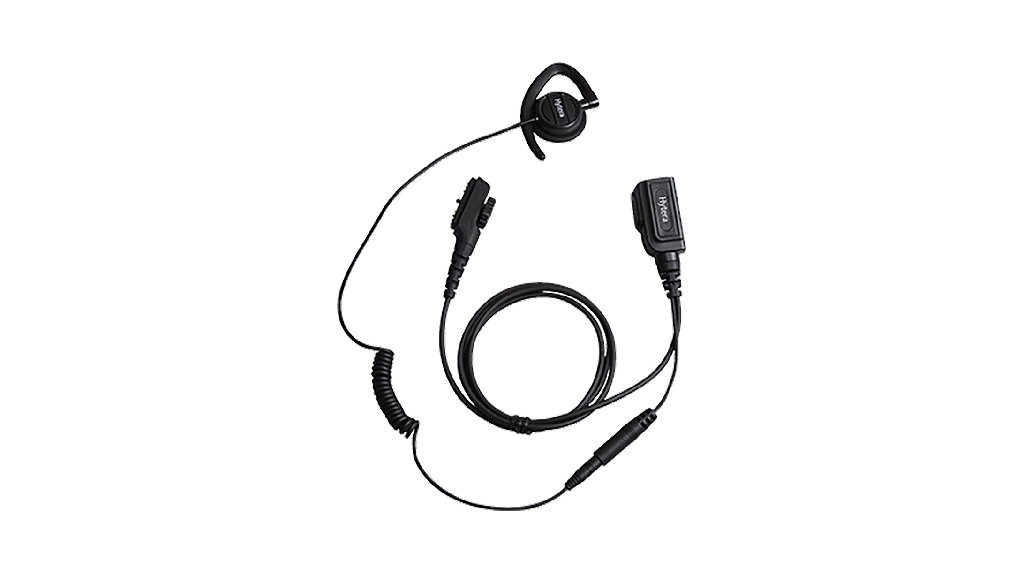

The Hytera EHN17 is a detachable swivel-style earpiece kit with in-line microphone and PTT, comprising ACN-01 and EH-02.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHN17 |
| Weight | about 55 g |
| Color | black |
| PTT Key | available |
| VOX | none |
| Emergency Key | none |
| Microphone Sensitivity | -45±3dB@1kHz 3.0V 2.2K,0dB=1V/Pa |
| Speaker Power | 50 mW (rated); 100 mW (max.) |
| Speaker Impedance | 150 Ω±15% @ 1 kHz |
| IP Rating | IP54 |
| Operating Temperature | –20℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
| Listed kit components | ACN-01 controller and EH-02 swivel earpiece |
Compatibility and Ordering
Confirm both components and the ACN-01 radio interface. Do not transfer the C-style EH-01 component of EHN16 into the EHN17 package definition.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHN17 configuration, host equipment and quantity required.
