Product Overview

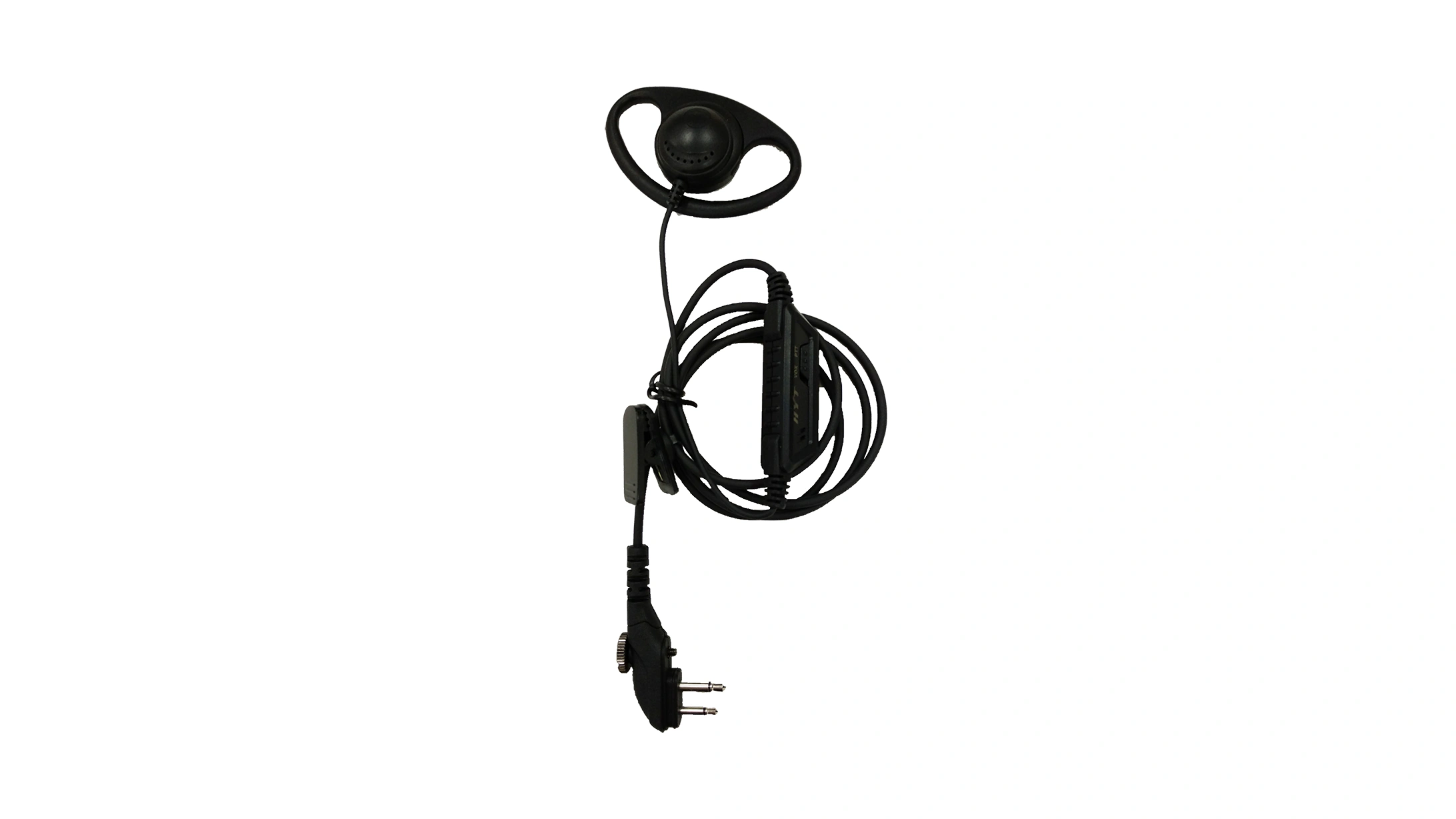

The Hytera EHM15-A is a black D-style earpiece with an in-line microphone, PTT and listed VOX support.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHM15-A |
| Weight | about 45 g |
| Color | black |
| PTT Key | available |
| VOX | available |
| Emergency Key | none |
| Microphone Sensitivity | -42±3 dB@1 kHz 3.0V 2.2 kilohm; 0 dB=1 V/Pa |
| Speaker Power | 50 mW (rated); 100 mW (max.) |
| Speaker Impedance | 150 Ω±15%@1 kHz |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 85℃ |
Compatibility and Ordering
Specify the -A suffix and exact host connection. Do not substitute EHM15 electrical values or storage limits; confirm VOX operation with the selected radio.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHM15-A configuration, host equipment and quantity required.
