Product Overview

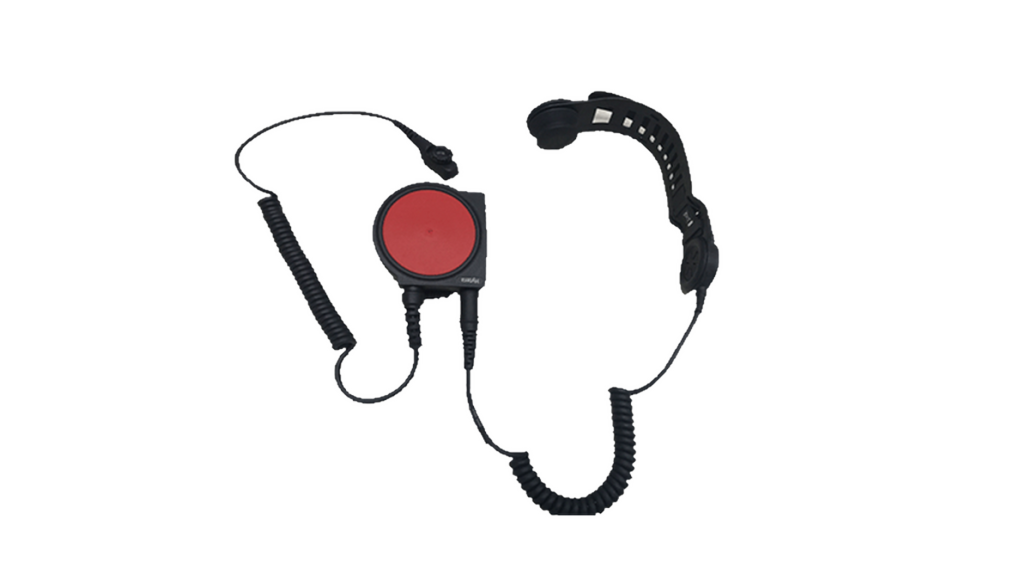

The Hytera EBN09-P is a bone-conduction headset with a large PTT button for HP605, HP685, HP705 and HP785 radios.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EBN09-P |
| PTT dimensions (mm) | 76.0 x 17.0 (mm) |
| PTT weight | about 120 g (without metal clip) |
| Color | black with red PTT button |
| PTT connector to radio | 13-pin connector |
| Headset weight | about 84 g |
| Headset connector | QR4 male (NEXUS) |
| Microphone sensitivity | -45 dB below 1 volt/G acceleration @ 1 kHz |
| Microphone impedance | 3900 Ω @ 1 kHz parallel 330 Ω |
| Speaker power | 200 mW (rated), 500 mW (max.) |
| Speaker impedance | 32 Ω±15% @ 1 kHz |
| Speaker inductance | L @ 120 Hz = 0.878 mH, L @ 1 kHz = 1.279 mH |
| Ingress protection | IP67 |
| Operating temperature | –20℃ to 55℃ |
| Storage temperature | –25℃ to 85℃ |
| Listed radios | HP605; HP685; HP705; HP785 |
Compatibility and Ordering
Confirm the 13-pin radio connection and QR4 male headset connection. The listed PTT weight excludes its metal clip and is separate from headset weight; confirm the complete supplied kit and mounting arrangement.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EBN09-P configuration, host equipment and quantity required.
