Product Overview

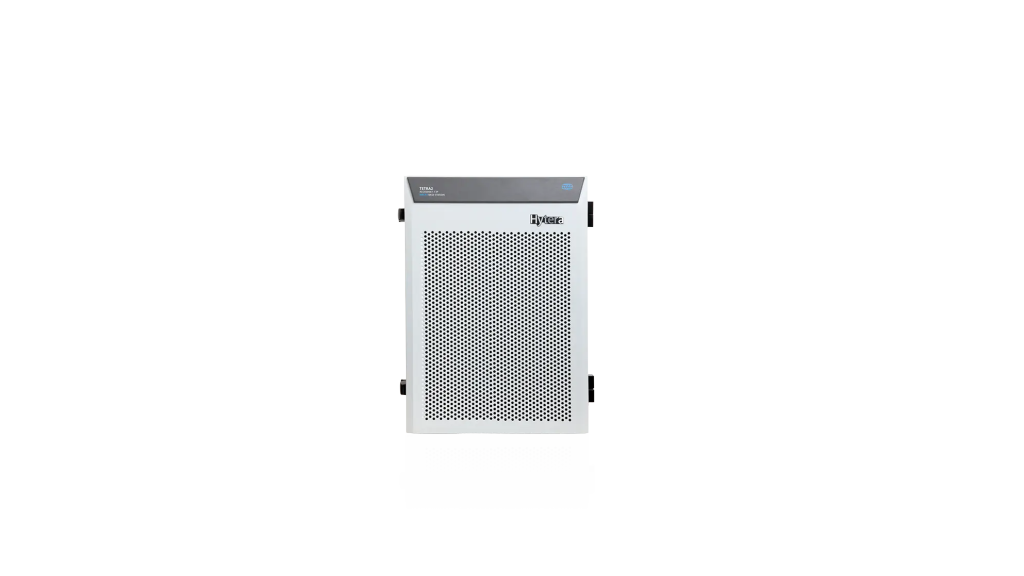

Hytera DIB-R5 Compact is a modular TETRA base station for small-capacity indoor deployments. It supports hybrid or high-power combiner configurations, receiver diversity and redundant system components. GNSS and PTP synchronisation options support network integration.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | DIB-R5 Compact |
| Combiner choices | Hybrid or high power |
| Output at antenna connection | Hybrid: 44 dBm; high power: 47 dBm |
| Supply | 110/230 VAC or 48 VDC |
| Weight | 60–80 kg; configuration dependent |
| Operating temperature | -30 to +55 °C |
| Synchronisation options | GNSS: GPS, Galileo, GLONASS, BeiDou; PTP |
| Receiver diversity options | Single, dual or triple diversity; configuration dependent |
| Frequency by combiner | Hybrid: 320-380, 380-470 or 806-869 MHz; high power: 380-470 MHz; select exact variant |
| Deployment | Indoor; one or two racks according to capacity |
| Redundancy options | Controller, carrier, MCCH, power supply and transport connection; configuration-dependent |
Request a Quote
Please specify your existing platform, device count, deployment environment and required functions. Hardware, software licences and implementation scope are confirmed in the quotation.
