Product Overview

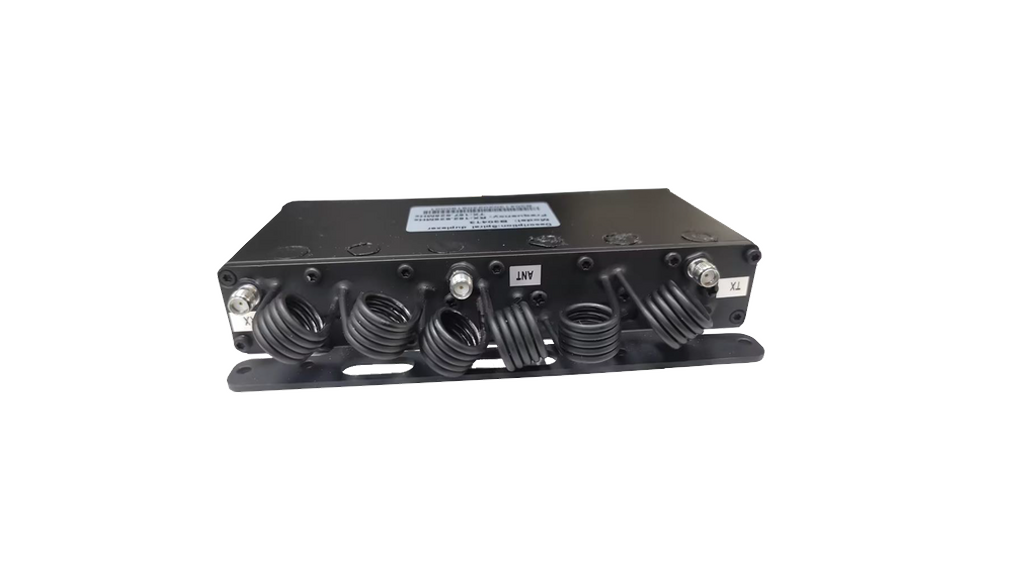

Hytera DT27 is a compact 136-174 MHz VHF duplexer for installation in HR655. It must be ordered with the repeater and is supplied factory-tuned and installed, with cables included; specify the required transmit/receive frequency pair.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | DT27 |
| Frequency Range | 136-174 MHz |
| VSWR | ≤1.25 @ +15°C to +35°C ≤1.40 @ -30°C to +60°C |
| Bandwidth | ±100 kHz |
| Insertion loss | ≤1.5 dB @duplex interval f≥5 MHz ≤1.7 dB @duplex interval 4≤f<5 MHz |
| Isolation | ≥75 dB |
| Average input power | 35 W |
| Impedance | 50 Ω |
| Connector | SMA-F |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Appearance | Black paint |
| Weight | 0.8 kg |
| Ordering | Order with HR655; supplied tuned and installed |
| Tuning restriction | Factory tuning only; specify HR655 ordering code with integrated duplexer |
| Included installation items | Cables included; confirm exact tuned frequency pair |
Request a Quote
Please provide the exact model, quantity, host equipment and required configuration. Compatibility and supplied components must match the quoted configuration.
