Product Overview

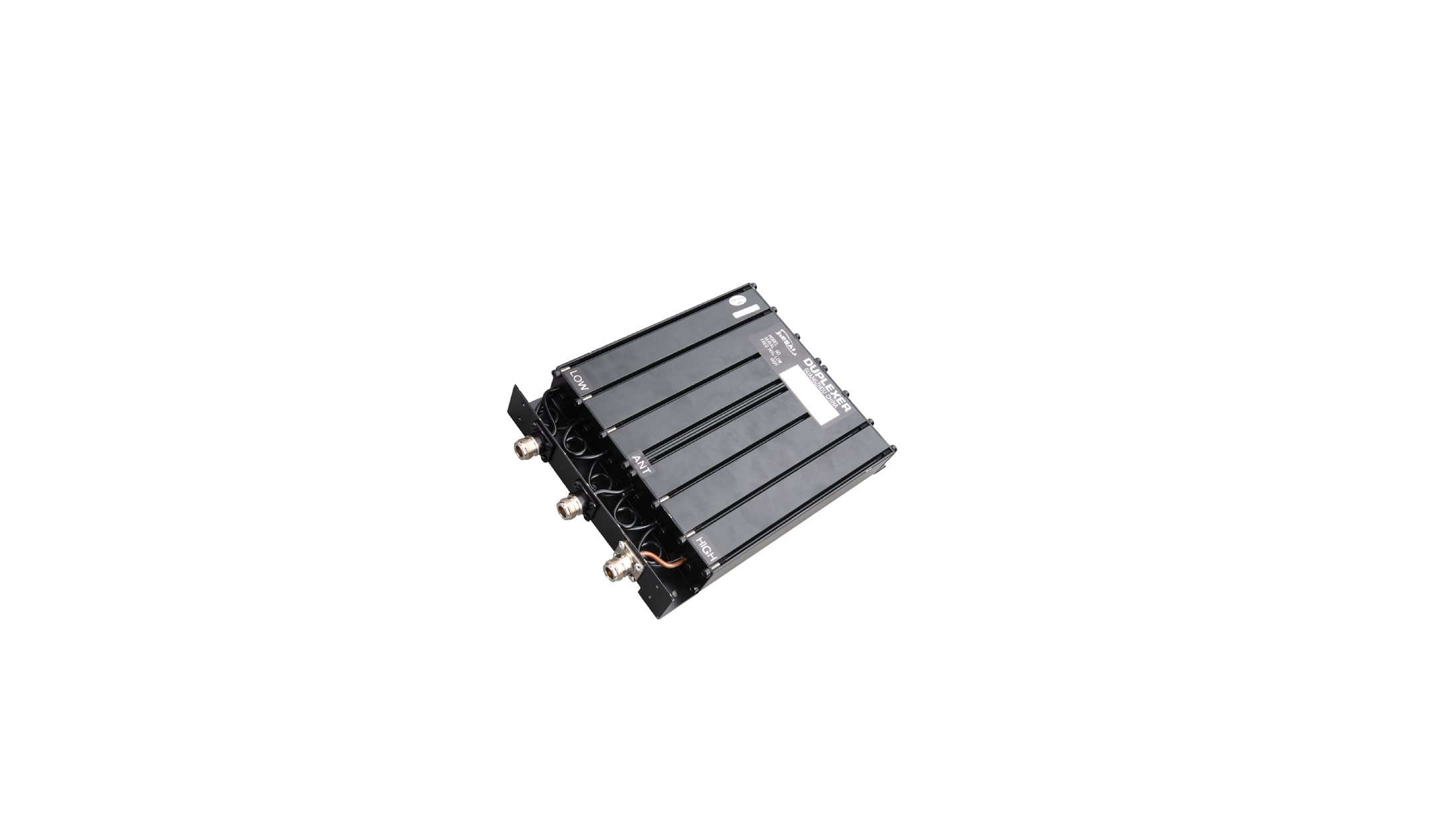

The Hytera DT26 is a UHF internal mini duplexer listed for HR655.
Key Features
- Band: UHF
- Ordering: Order with HR655; supplied tuned and installed
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | DT26 |
| Band | UHF |
| Ordering | Order with HR655; supplied tuned and installed |
| Frequency range (page body) | 400-470 MHz |
| Insertion loss (page body) | 1.5 dB |
| Isolation (page body) | 75 dB |
| Power rating (page body) | 50 W; confirm duty and tuned configuration |
| Temperature range (page body) | -30 to +60 °C |
Compatibility and Ordering
The manufacturer specifies ordering together with HR655, supplied tuned and installed. Confirm transmit/receive frequencies and spacing; do not present it as an unrestricted standalone order.
Repeater Configuration
DT26 appears in the HR655 optional-accessory list. Supply the required transmit and receive frequencies, their separation and the HR655 hardware variant with the enquiry. The duplexer must be ordered with the repeater and supplied tuned and installed. Its listed 50 W component rating is not a claim that the HR655 provides 50 W RF output.
Request a Quote
Contact MARS SC with the exact accessory model, connected equipment and required configuration.
