Product Overview

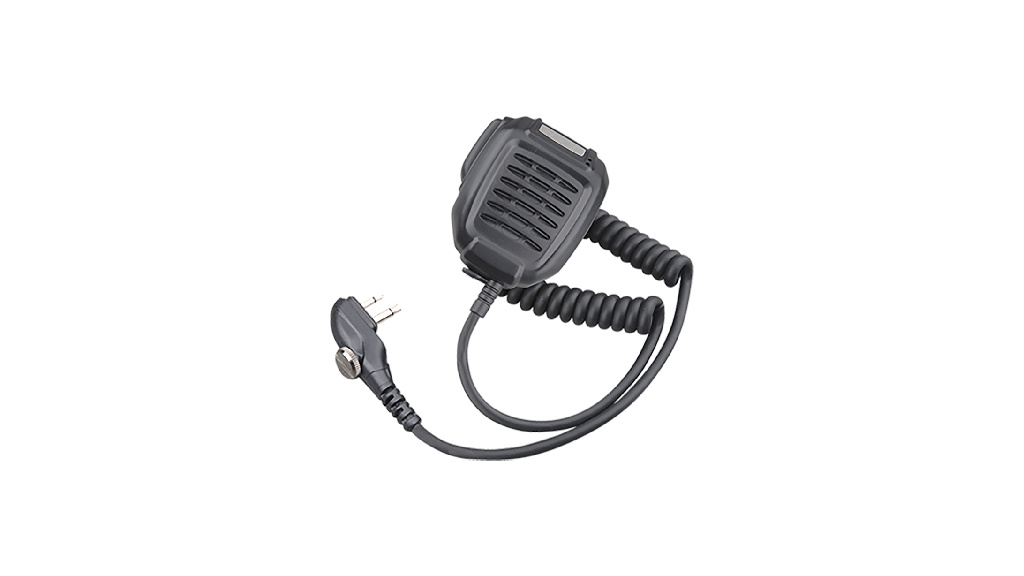

The Hytera SM08M3 is a remote speaker microphone with a two-pin radio connector, PTT and a 3.5 mm accessory interface.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | SM08M3 |
| Dimensions | 74 mm x 58 mm x 30 mm |
| Weight | about 150 g |
| Color | black |
| PTT Key | available |
| Emergency Key | none |
| Accessory Interface | 3.5 mm |
| Connector | 2-pin |
| Microphone Sensitivity | –40±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker Power | 2W (rated); 3W (max.) |
| Speaker Impedance | 16 Ω±15% @ 1.5 kHz |
| Operating Temperature | –30℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
Compatibility and Ordering
Confirm the radio's two-pin wiring and the intended accessory at the 3.5 mm interface. The microphone has no emergency key; matching connector appearance is not sufficient for substitution.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact SM08M3 configuration, host equipment and quantity required.
