Product Overview

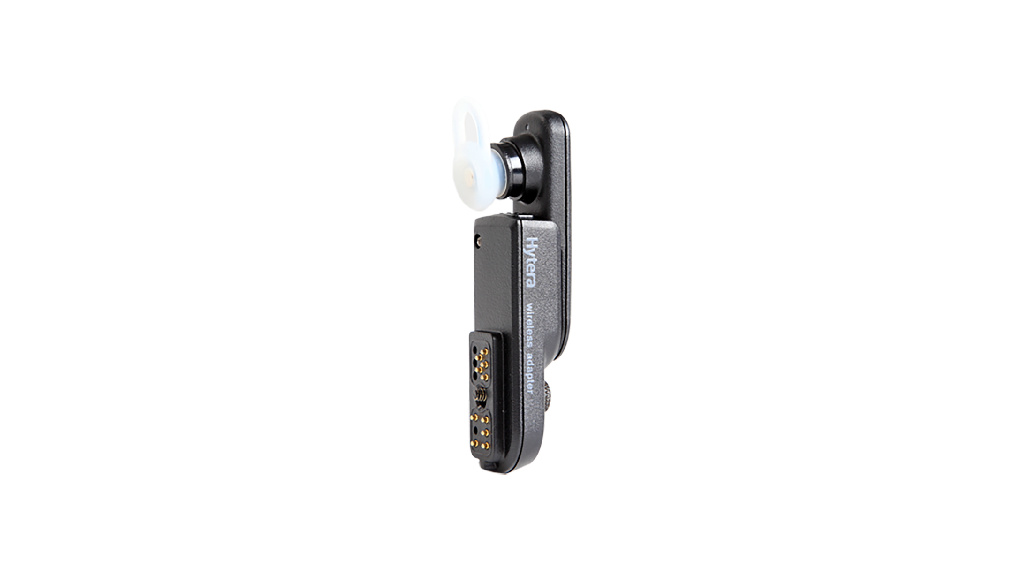

Hytera ESW01-N1 is a wireless earset kit. The listed set comprises ESW01 and ADN-01.
Key Features
- PTT Key: available
- Connector: 16-pin connector
- Battery Life: ≥4H
- Charging Time: ≤2H
- IP Rating: IP54
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | ESW01-N1 |
| Weight | about 22 g |
| Color | black |
| PTT Key | available |
| Connector | 16-pin connector |
| Microphone Sensitivity | -45±3dB@1kHz 2.0V 2.2K,0dB=1V/Pa |
| Speaker Power | 3 mW (rated); 5 mW (max.) |
| Speaker Impedance | 16Ω±15%@1kHz |
| Manufacturer-listed certification | CE、FCC、IC |
| Battery Life | ≥4H |
| Charging Time | ≤2H |
| IP Rating | IP54 |
| Operating Temperature | -20 to 60℃ |
| Storage Temperature | -20 to 60℃ |
| Listed kit components | ADN-01 wireless adapter and ESW01 earpiece |
Manufacturer-listed Equipment
Hytera lists this accessory on the following equipment pages:
- Optional accessory listings: PD705; PD755; PD785; PT560H; PT580H-Plus.
Confirm the radio, wireless adapter, firmware, pairing and PTT functions for the complete set. An accessory listing does not establish all kit components or universal wireless compatibility.
Compatibility and Configuration
Confirm the exact host device and required audio configuration before ordering.
Ordering Information
Confirm the exact part number, host variant, connector pinout, software/firmware support, required PTT/VOX functions and supplied components. Kit includes ESW01 and discontinued ADN-01; confirm kit availability and exact adapter. 16-pin belongs to adapter configuration. Confirm wireless pairing and PTT support with the exact host; published range and operating time depend on conditions.
