Product Overview

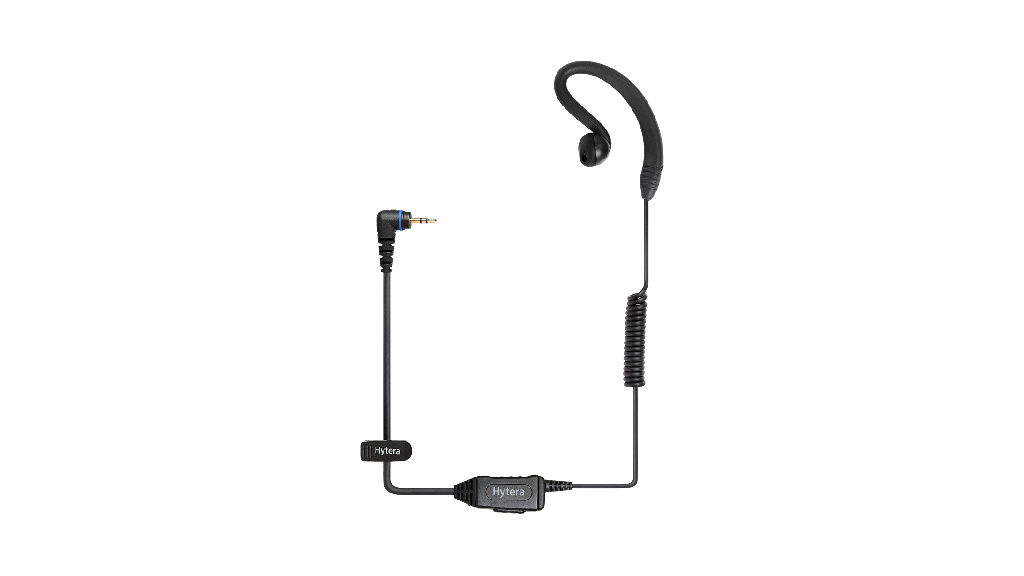

The Hytera EHS16 is a black C-style earpiece with in-line microphone and PTT for listed BD3, PD3 and PNC370 variants.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHS16 |
| Weight | about 35 g |
| Color | black |
| PTT Key | available |
| VOX | none |
| Emergency Key | none |
| Microphone Sensitivity | -42±3 dB@1 kHz 2.0V 2.2 kilohm; 0 dB=1 V/Pa |
| Speaker Power | 10 mW (rated); 30 mW (max.) |
| Speaker Impedance | 32 Ω±15%@1 kHz |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 85℃ |
| Listed radios | BD305LF; PD355LF; PD365LF; BD305; BD355; PD355; PD365; PD375; PNC370 |
Compatibility and Ordering
Confirm the exact model, including any LF suffix, against the official list. The page lists no VOX or emergency key and does not establish an ingress-protection rating.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHS16 configuration, host equipment and quantity required.
