Product Overview

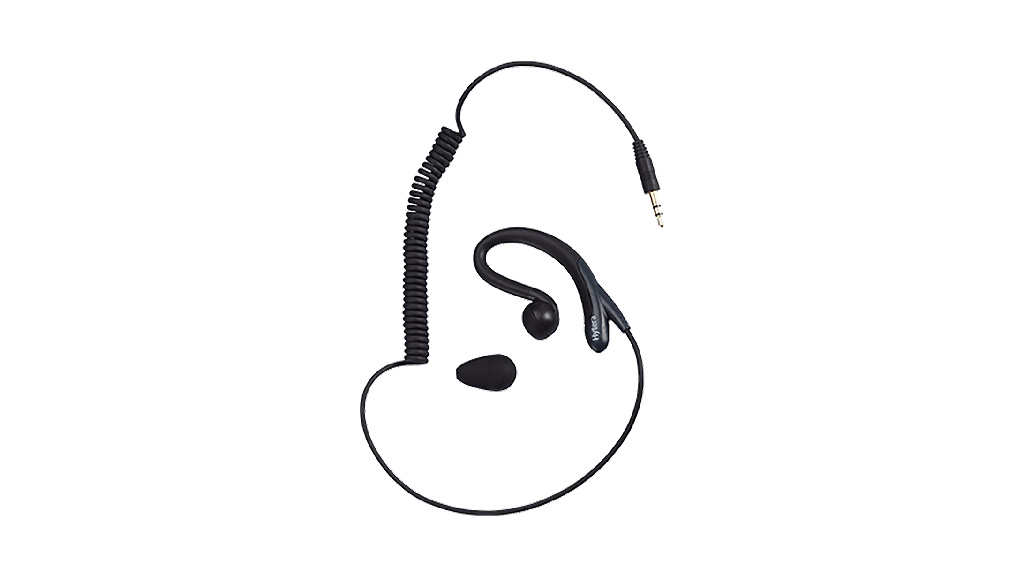

The Hytera EH-01 is a receive-only C-style earpiece with a 3.5 mm plug.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EH-01 |
| Weight | about 12g |
| Color | black |
| PTT Key | none |
| VOX | none |
| Emergency Key | none |
| Speaker Power | 10 mW (rated); 20 mW (max.) |
| Speaker Impedance | 32Ω ±15%@1kHz |
| Operating Temperature | –20℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
| Note | PTT&MIC controller cable is required |
| Connection | 3.5 mm plug; receive only |
Compatibility and Ordering
Specify the compatible PTT/microphone controller cable or remote speaker microphone and its radio connection. The earpiece alone does not provide a microphone, PTT or direct-radio compatibility.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EH-01 configuration, host equipment and quantity required.
