Product Overview
Select the EG8112H for a GPON project combining wired data, a telephone interface and CATV. Its GPON uplink terminates the fiber service, while one Gigabit Ethernet port, one POTS port and CATV determine how local equipment connects. Wireless coverage can be designed independently using a separate access point.
Key Features
- Optical access: GPON, to be qualified on the target OLT and operator service profile.
- Local connections: one Gigabit Ethernet port, one POTS port and CATV.
- Wireless planning: No built-in Wi-Fi; select the access point and coverage plan separately.
- Selection detail: CATV requires a compatible optical TV service and operator provisioning. The connector alone does not activate service.
Specifications
| Brand | Huawei |
|---|---|
| Model | EG8112H |
| Product family | OptiXstar |
| Product type | GPON ONT |
| Access standard | GPON |
| Wi-Fi | No Wi-Fi |
| Wi-Fi bands | — |
| Interfaces | 1x GE + 1x POTS + 1x CATV |
| SIM / external antenna | No SIM |
| Region / variant | International / Huawei Enterprise |
Specifications describe the referenced model. Confirm the supplied hardware and firmware for the destination network. Wireless rates are theoretical link rates, not guaranteed internet throughput.
Applications
- Project fit: A GPON project combining wired data, a telephone interface and CATV.
- Operator rollouts: qualify a sample on the intended OLT, authentication method and service profiles before ordering a deployment quantity.
- Replacement planning: match both optical access and local interfaces, then arrange operator approval before swapping an existing ONT.
Before You Order
For a useful compatibility check and quotation, include:
- GPON service, OLT vendor/model and software version.
- ONT registration method, OMCI requirements, VLANs and bridge/routing design; do not send account passwords.
- Required wired link speeds, wireless coverage and any provisioned voice or TV service.
- Quantity, destination, firmware requirements, optical connector and power-plug type.
Discuss your EG8112H requirements
Frequently Asked Questions
Does the CATV connector provide a TV subscription?
No. CATV requires a compatible optical TV service and operator provisioning. The connector alone does not activate service.
Can it replace any fiber modem?
No. GPON support alone does not establish interoperability. The operator must accept the ONT and apply the correct authentication and service profiles.
Does the interface speed guarantee internet throughput?
No. Port rates and wireless link rates are not guaranteed internet speeds. The service plan, provisioning, network load and connected equipment all matter.
Is telephone service ready as soon as it is connected?
The POTS interface requires an operator-provisioned voice service. Confirm the voice profile and supported firmware before deployment.
Product Reference

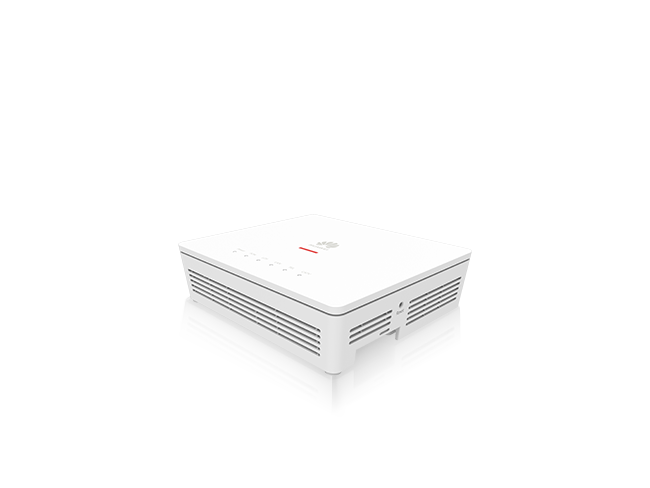

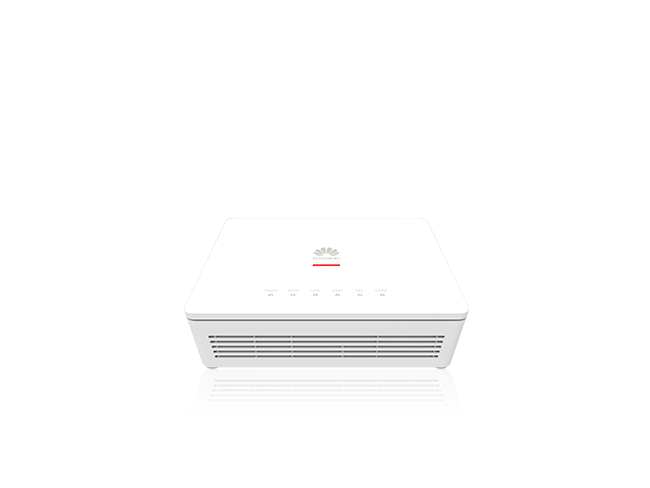

Manufacturer product information. Product illustrations are reference images; supplied hardware and regional versions should be confirmed before ordering.
