Product Overview
Select the EG8147X6-10 for a combined GPON data, voice and CATV installation. Its GPON uplink terminates the fiber service, while four GE ports, one POTS port, CATV and one USB port determine how local equipment connects. Wireless access operates on 2.4 GHz and 5 GHz.
Key Features
- Optical access: GPON, to be qualified on the target OLT and operator service profile.
- Local connections: four GE ports, one POTS port, CATV and one USB port.
- Wireless planning: Wi-Fi 6 for compatible local clients; coverage depends on placement, building materials and client capability.
- Selection detail: CATV uses its dedicated service interface. IPTV is delivered over the data network and needs its own operator service configuration.
Specifications
| Brand | Huawei |
|---|---|
| Model | EG8147X6-10 |
| Product family | OptiXstar |
| Product type | GPON ONT |
| Access standard | GPON |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Wi-Fi bands | 2.4 + 5 GHz |
| Interfaces | 4x GE + 1x POTS + 1x CATV + 1x USB |
| SIM / external antenna | No SIM |
| Region / variant | International / Huawei Enterprise |
Specifications describe the referenced model. Confirm the supplied hardware and firmware for the destination network. Wireless rates are theoretical link rates, not guaranteed internet throughput.
Applications
- Project fit: A combined GPON data, voice and CATV installation.
- Operator rollouts: qualify a sample on the intended OLT, authentication method and service profiles before ordering a deployment quantity.
- Replacement planning: match both optical access and local interfaces, then arrange operator approval before swapping an existing ONT.
Before You Order
For a useful compatibility check and quotation, include:
- GPON service, OLT vendor/model and software version.
- ONT registration method, OMCI requirements, VLANs and bridge/routing design; do not send account passwords.
- Required wired link speeds, wireless coverage and any provisioned voice or TV service.
- Quantity, destination, firmware requirements, optical connector and power-plug type.
Discuss your EG8147X6-10 requirements
Frequently Asked Questions
Is CATV the same as IPTV?
No. CATV uses its dedicated service interface. IPTV is delivered over the data network and needs its own operator service configuration.
Can it replace any fiber modem?
No. GPON support alone does not establish interoperability. The operator must accept the ONT and apply the correct authentication and service profiles.
Does the interface speed guarantee internet throughput?
No. Port rates and wireless link rates are not guaranteed internet speeds. The service plan, provisioning, network load and connected equipment all matter.
Is telephone service ready as soon as it is connected?
The POTS interface requires an operator-provisioned voice service. Confirm the voice profile and supported firmware before deployment.

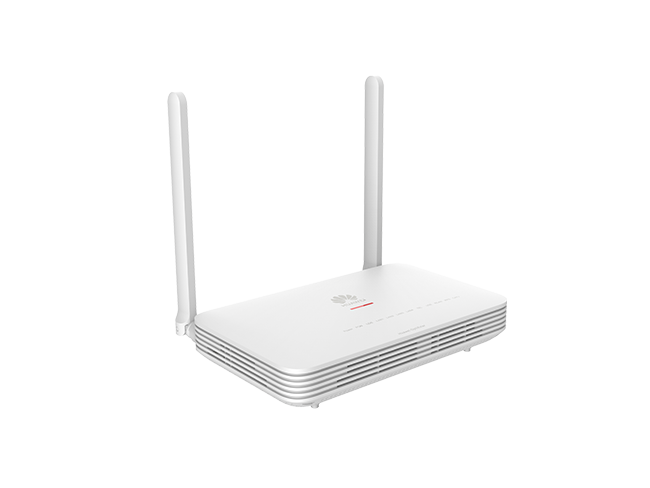

Product Reference
Manufacturer product information. Product illustrations are reference images; supplied hardware and regional versions should be confirmed before ordering.
