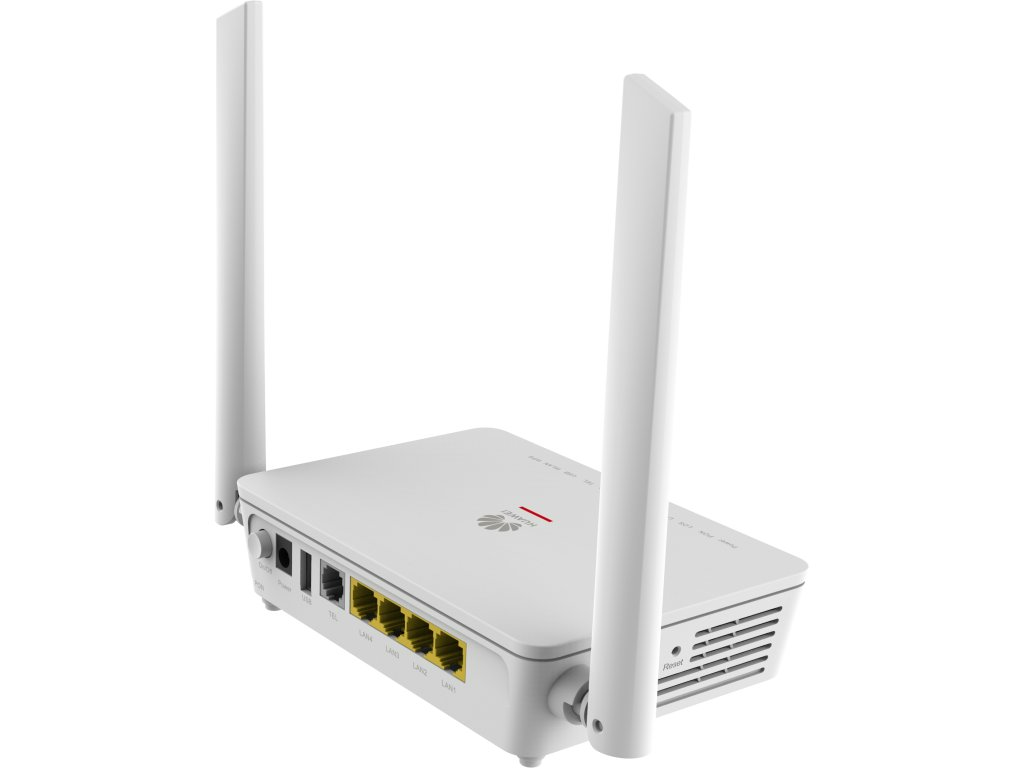

Huawei OptiXstar EG8145X6

Huawei OptiXstar EG8145X6

The Huawei OptiXstar EG8145X6 is an intelligent GPON and Wi-Fi routing-type ONT. It uses the GPON Wi-Fi technology to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Category:

Key Features

ParametersHuawei OptiXstar EG8145X6
Dimensions (H x W x D)(without external antenna and pads)35 mm x 195 mm x 125 mm
Operating temperature0°C to 40°C
Operating humidity5% RH to 95% RH (non-condensing)
Power adapter input100–240 V AC, 50/60 Hz
System power supply11–14 V DC, 1.5 A
Static power consumption6 W
Maximum power consumption18 W
Memory128 M Flash, 256 M RAM
NNIGPON
UNI4 x GE+1 x POTS+2.4G/5G Wi-Fi+1 x USB
IndicatorsPower/PON/LOS/LAN/TEL/USB/WLAN/WPS
WeightAbout 372 g
