Key Features
Precise Positioning
With dual frequency positioning, the position can be determined with an accuracy of up to 1 meter by receiving and processing satellite signals in two frequency bands simultaneously.
Anti-multipath Algorithm
Experience smooth and stable voice communication in harsh electromagnetic environments.
Innovative Design
The very compact and lightweight design with a depth of only 31mm and a weight of 285g provides the user with comfort when carrying the radio for long periods of use
2.4 inch LCD display
The semi-transparent and semi-reflective LCD screen ensures clear readability in direct sunlight and reduces eye strain.
Advanced Version of Hardware
Includes features such as up to 100 voice commands in English, wake-up by voice, WLAN for smart radio management, full function car kit ability, and an anti-multipath algorithm.
Robust and Reliable
IP65, IP66, IP67 and IP68 certified to withstand immersion in 2 meters of water for up to 4 hours. Tested to MIL-STD-810 H standard.
Fast charging
The built-in battery can be fully charged in just 1.5 hours, and a 30-minute quick charge provides 10 hours of communication.
Superior Audio Quality
AI-based noise cancellation reduces background noise and improves speech intelligibility. A high-performance speaker and professional acoustic cavity design ensure the highest audio volume.
Water-porting Design
Ensures clear audio quality and extends the life of the speakers, even in heavy rain
One port fits all

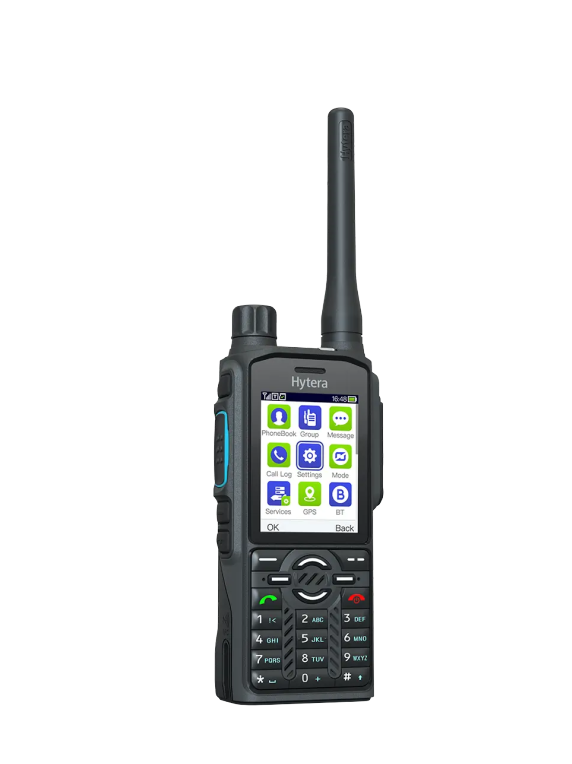

The PT590 can not only be charged but also programmed and upgraded via the Type-C USB port on the bottom.
| General | |
|---|---|
| Frequency Range | Fv: 380-475 MHz |
| Dimensions(H×W×D) mm | 125 x 55 x 31 mm |
| Weight | 285 g |
| Operating Voltage | 7.7 V |
| Battery | 2000mAh |
| Battery Life (TMO 5/5/90 duty cycle) | >22 hours |
| User Interface | |
|---|---|
| Display | 2.4 inch, 320*240 pixels, 262K colors |
| Talk Group-TMO | 12000 |
| Talk Group-DMO | 6000 |
| Telephone book | 2000 |
| Inbox | ≤550 entries |
| Outbox | ≤550 entries |
| Drafts | ≤550 entries |
| Folder-TMO | 200 |
| Folder-DMO | 50 |
| State Message | 200 |
| RF Specifications | |
|---|---|
| Channel Bandwidth | 25 kHz |
| RF Power Output | 3 W |
| RF Power Level Accuracy | ±2 dB |
| RF Power Control | 5 dB per step |
| Receiver Class | ETSI EN 392-2/396-2 Class A and Class B |
| RX Sensitivity(Static) | -118 dBm (min) -120 dBm (typical) |
| RX Sensitivity(Dynamic) | -108 dBm (min) -110 dBm (typical) |
| Audio Power Output | 2 W (Peak 3 W) |
| GPS Specifications | |
|---|---|
| GNSS | GPS, BDS, GLONASS, Galileo |
| RX Sensitivity | -149 dBm acquisition sensitivity -165 dBm tracking sensitivity |
| Horizontal Position Accuracy | <1.0 m (95% Probable, -130 dBm) |
| Cold Start (Time to First Fix) | <35 seconds |
| Hot Start (Time to First Fix) | <1 second |
| Conditions: | Open Sky environment -130 dBm signal strength 24 H static |
| Environmental | |
|---|---|
| Operating Temperature | -20°C to + 60°C -30°C to + 70°C (limited performance) |
| Storage Temperature | -40°C to + 85°C |
| Dust & Water Protection | IP65, IP66, IP67, IP68 (2 m, 4 h) |
| Humidity | <95% |
| Vibration,Drop&Shock | MIL-STD-810 H EN300 019-1-7 5M3 GJB150A |
