Product Overview

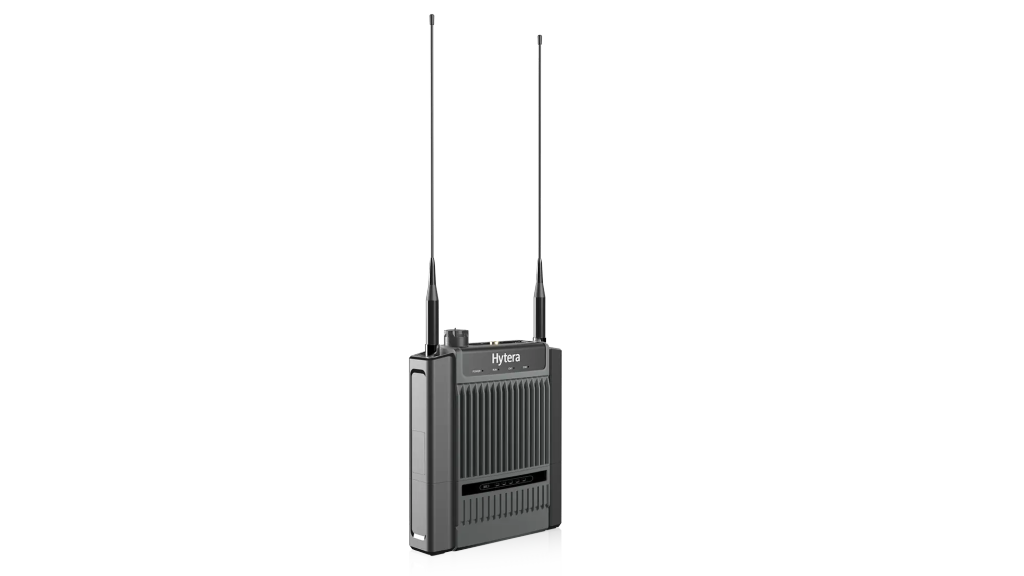

The Hytera E-pack200 DMR is a portable DMR Tier II ad-hoc repeater supporting two simultaneous voice paths and networks of up to 31 nodes. Separate VHF and UHF hardware versions are available.
Key Features
- Protocol: DMR conventional (Tier II)
- Networking capacity: 31
- Battery capacity (optional): 148 Wh
- Battery life: About 9 hours (15–85 duty cycle)
- Output power: 1W / 5W / 10W (per way)
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | E-pack200 DMR |
| Frequency | 136–174 MHz (VHF version) or 400–470 MHz (UHF version) |
| Protocol | DMR conventional (Tier II) |
| Networking capacity | 31 |
| Channel spacing | 12.5 kHz |
| Rated voltage | 14.8 V DC |
| Battery capacity (optional) | 148 Wh |
| Charging time | Rapid charge 2h 80%; 3h fully charged |
| Battery life | About 9 hours (15–85 duty cycle) |
| Dimensions (H x W x D) in mm | 211 x 62 x 235 |
| Weight | 3.1 kg (with battery) |
| Output power | 1W / 5W / 10W (per way) |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Waterproof & Dustproof | IP67 |
| GNSS | GPS |
| Deployment options | Vehicle, backpack, pole or wall installation; mounting accessories depend on supplied kit |
Functions and Deployment
- Supports wireless ad-hoc networking with up to 31 nodes.
- The dual-channel description specifies four independent carrier frequencies; confirm the planned channel arrangement for the intended operating mode.
Configuration and Ordering
Confirm exact hardware, operating band, channel plan, antenna, power supply, batteries and enabled software. Coverage depends on terrain, antenna placement and network design. Select VHF or UHF hardware. The 148 Wh battery is optional. Confirm carrier assignments for dual-channel operation and the LTE hardware, SIM, service and dispatch integration.
Quotation Requirements
Select VHF or UHF hardware and define the dual-path carrier plan. Confirm the optional battery, antenna and mounting kit, and any LTE hardware, SIM and dispatch service. The 20 W current-consumption test condition is not a 20 W per-channel RF rating.
Request a Quote
Contact MARS SC with the deployment country, coverage requirements and required E-pack200 DMR configuration.
