Product Overview

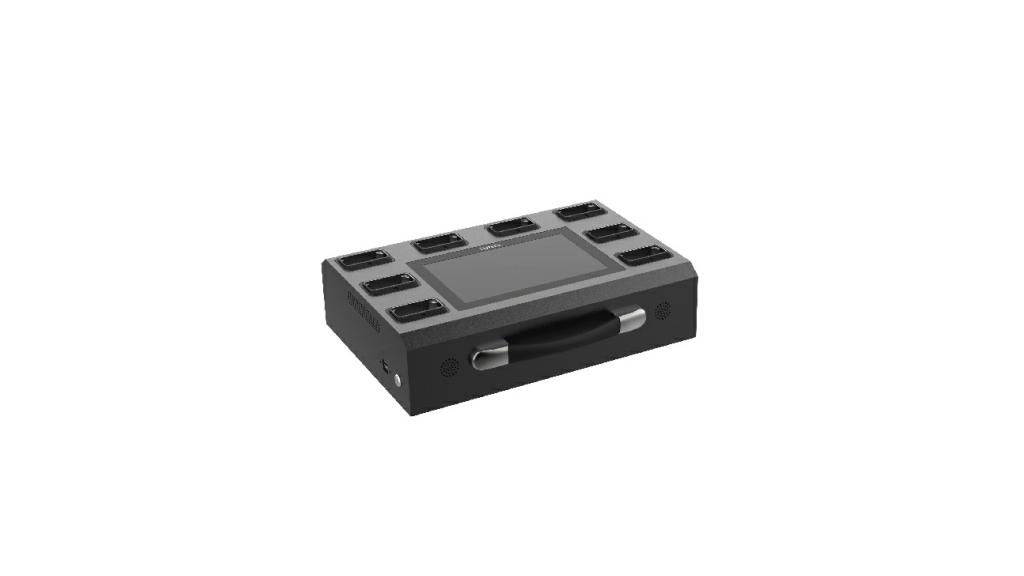

The Hytera EDS30 is a portable docking station for acquiring evidence and charging up to eight compatible body cameras, with a 10.1-inch touchscreen and a weight of 7.5 kg.
Key Features
- Memory (manufacturer Note): 8 GB DDR4
- Screen: 10.1-inch touchscreen
- Acquisition capacity: 8 compatible body cameras
- Storage maximum (configuration-dependent): Up to 16 TB; confirm installed disks
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EDS30 |
| Dimensions | 436*298*110mm |
| Weight | 7.5kg |
| Operating Temperature | -10~+45℃ |
| Storage Temperature | -20~+60℃ |
| Operating System (manufacturer Note) | Windows 10 |
| Memory (manufacturer Note) | 8 GB DDR4 |
| Processor (manufacturer Note) | Intel Core i5 quad-core |
| Network interface | 1 Gigabit Ethernet port |
| USB ports | 2 |
| Screen | 10.1-inch touchscreen |
| Acquisition capacity | 8 compatible body cameras |
| Storage maximum (configuration-dependent) | Up to 16 TB; confirm installed disks |
| Wi-Fi (manufacturer Note) | 802.11a/b/g/n/ac |
Functions and Deployment
- Acquires evidence from up to eight compatible body cameras while charging them.
- The touchscreen displays acquisition/charging status and supports media playback; WLAN can be used for configured evidence upload.
Accessories and Configuration
Specify the required storage option, power supply, camera or docking-station compatibility, firmware and evidence-management software. Confirm licences, server or cloud services and supplied accessories separately. Cameras, expansion modules and maximum-capacity storage are not assumed included. Confirm host requirements, transfer workflow and supported operating-system configuration.
Ordering Information
Provide the compatible camera/dock list, installed storage, retention period, licences and supported OS configuration. Confirm external power requirements: portable construction does not establish battery operation. The published 16 TB value is a maximum, not included storage.
Request a Quote
Contact MARS SC with the deployment country, evidence-management workflow and required EDS30 configuration.
