Product Overview

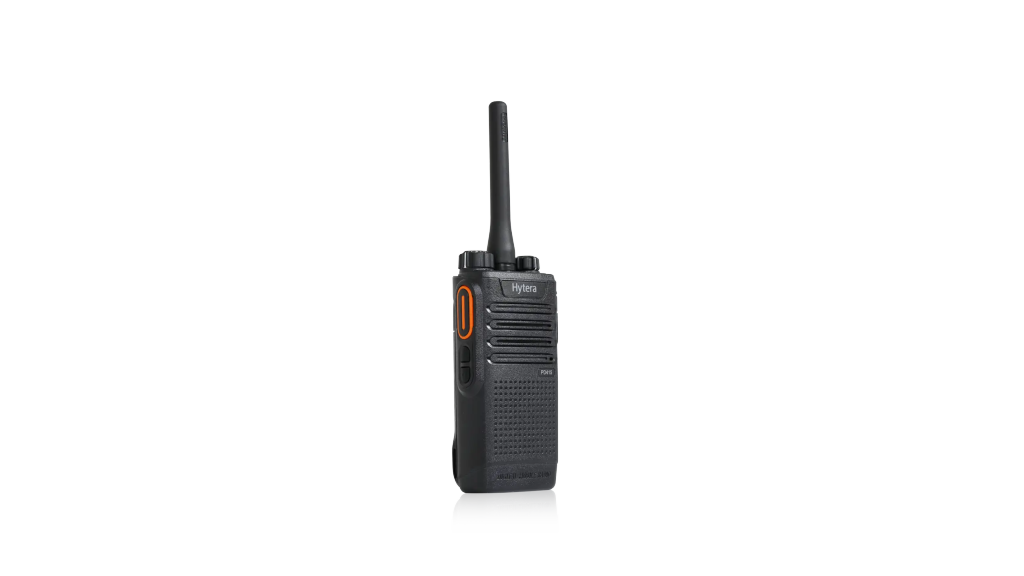

The Hytera PD415 is a DMR handheld radio with an embedded RFID reader. With a configured Hytera Patrol System, it can report tag reads for patrol and asset-management workflows.
Key Features
- Frequency Range: UHF:400-470 MHz; VHF:136-174 MHz
- Channel Capacity: 48
- Battery: standard:1500 mAh(Li-Ion); option:2000 mAh(Li-Ion)
- Dust & Water Protection: IP54
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | PD415 |
| Frequency Range | UHF:400-470 MHz; VHF:136-174 MHz |
| Channel Capacity | 48 |
| Zone Capacity | 3 |
| Operating Voltage | 7.4 V |
| Battery | standard:1500 mAh(Li-Ion); option:2000 mAh(Li-Ion) |
| Battery Life(5/5/90 Duty Cycle,High TX Power) | 12/16 hours(1500 mAh); 16/22 hours(2000 mAh); Analog/Digital: |
| Dimensions(H×W×D) mm | 112 mm×55 mm×31 mm |
| Weight | 270 g |
| Rated Audio Power Output | 0.5 W |
| Operating Temperature | -30 ℃~+60 ℃ |
| Storage Temperature | -40 ℃~+85 ℃ |
| Dust & Water Protection | IP54 |
| Patrol function | RFID operation with Hytera Patrol System; tags, software and configuration must be confirmed |
Functions and Deployment
- Supports analogue and DMR operation for a staged migration.
- The embedded RFID reader can send tag-read information to a configured Hytera Patrol System.
Accessories and Configuration
Select the required frequency hardware, programming and enabled options. Confirm the final accessory kit before ordering. Confirm the Hytera Patrol System, RFID tags and required software configuration. Manufacturer-listed standard accessory references: BL1504, CH10A07, PS1017, PS1026, PS1044, BC08, RO03. Final kit contents depend on the supplied version.
Ordering Information
Provide the required VHF or UHF hardware, channel plan, RFID checkpoint and ID-tag requirements, and Patrol System software configuration. Confirm RF transmit output for the quoted variant; the listed 0.5 W value is audio output.
Request a Quote
Contact MARS SC with the deployment country, radio system and required PD415 configuration.
