Product Overview

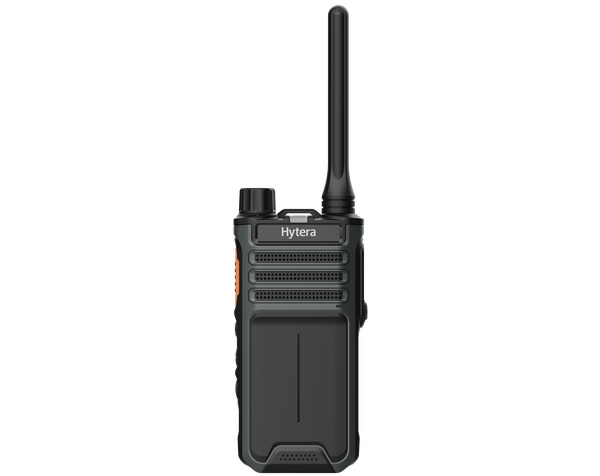

Hytera BP515LF is a handheld radio supporting both analogue PMR446 and digital DMR Tier I operation. The EU LF model is listed for 446.0-446.2 MHz and 0.5 W RF output, with a 1500 mAh standard battery and a 2200 mAh option.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | BP515 LF |
| Frequency Range | 446.0 – 446.2 MHz |
| Supported operating modes | DMR Tier I (license-free DMR – ETSI TS 102 361-1), Analogue PMR446 |
| Operating voltage | 7.2 V |
| Battery | 1500 mAh (standard); 2200 mAh (optional) |
| Battery life (5/5/90 duty cycle, high TX power) | Analogue: 17 hours (1500 mAh), 22 hours (2200 mAh) Digital: 18 hours (1500 mAh), 24 hours (2200 mAh) |
| Dimensions (H x W x D) | 115 x 55 x 29.5mm |
| Weight | 210 g |
| RF power output | 0.5 W |
| Operating Temperature | -30°C to +60°C (radio only / battery: -20 ℃) |
| Storage Temperature | -40 ℃ to +85 ℃ |
| Ingress protection | IEC60529-IP54 |
| User feedback | Voice notifications for programmable-button operation and channel changes |
Request a Quote
Contact MARS SC for pricing and availability. Please include the model and quantity in your enquiry.
