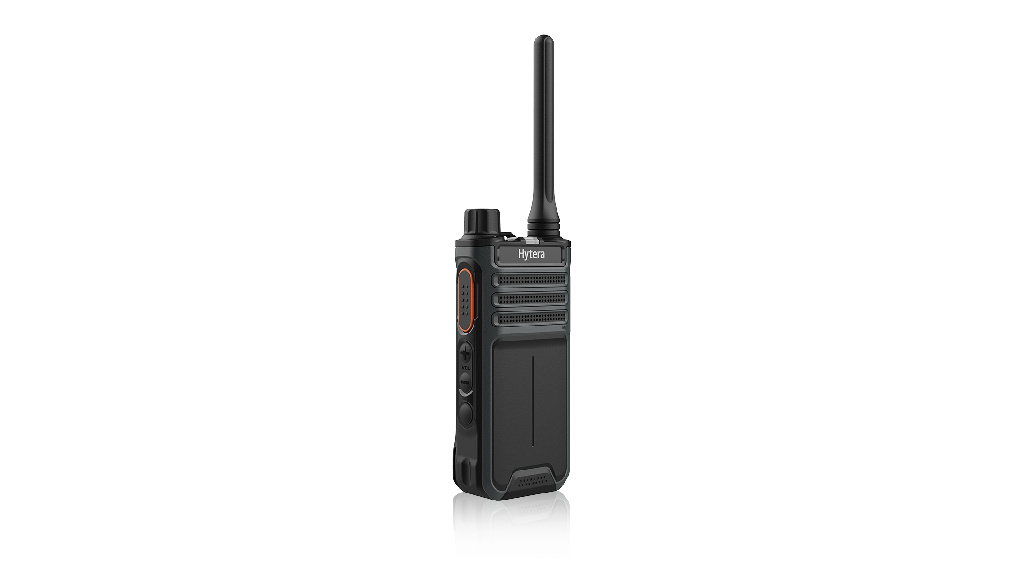

Hytera BP515 DMR and Analogue Radio

General data
Frequency Range	VHF：136-174 MHz U1：400-470 MHz
Channel Capacity	256 (128 analogue, 128 digital)
Zone Capacity	4 (16 channels per zone)
Channel Spacing	12.5 kHz/20 kHz/25 kHz
Operating Voltage	7.4 V (rated)
Battery	Standard:1500 mAh 7.4 V Optional:2200 mAh 7.4 V
Battey Life(5/5/90 Duty Cycle,High TX Power)	12 h (1500 mAh); 16 h (2200 mAh)
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	115 mm x 55 mm x 29.5 mm
Weight	210 g
BT	BT 5.0 BLE+EDR (hardware option)

Receiver
Sensitivity(Analog)	0.18 μV (12 dB SINAD)
Sensitivity(Digital)	0.18 μV/BER5%
Adjacent Channel Selectivity	TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz
Intermodulation	TIA-603: 70 dB@12.5/20/25 kHz ETSI: 65 dB@12.5/20/25 kHz
Spurious Response Rejection	TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 70 dB@12.5/20/25 kHz
Blocking	TIA-603: 80 dB; ETSI: 84 dB
Hum&Noise	40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Rated Audio Power Output	1 W
Rated Audio Distortion	≤3%
Audio Response	+1~-3 dB
Conducted Spurious Emission	<-57 dBm

Transmitter
RF Power Output	UHF：1W / 4W; VHF：1W / 5W
FM Modulation	11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz
4FSK Digital Modulation	12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW
Conducted/Radiated Emission	-36 dBm＜1 GHz; -30 dBm＞1 GHz
Modulation Limiting	±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz
FM Hum&Noise	40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz
Adjacent Channel Power	60 dB@12.5 kHz; 70 dB@20/25 kHz
Audio Distortion	≤3%
Digital Protocol	ETSI-TS102 361-1,2 & 3
