Key Features
IMPROVED USER EXPERIENCE
Long-life keys | 3.5 mm jack audio connector | USB Type-C port for programming and upgrading.
EXCELLENT COVERAGE

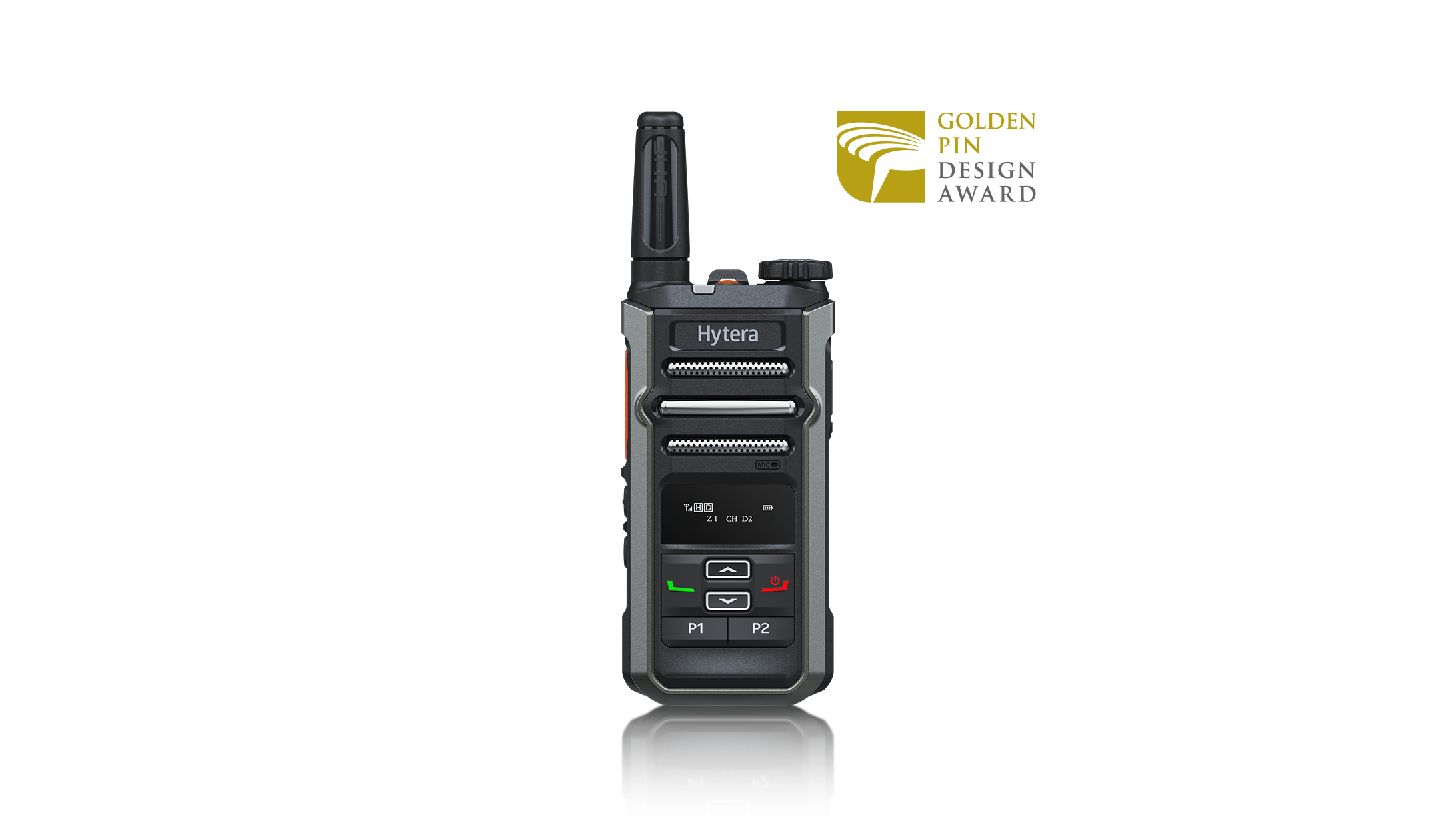

The BP5 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.
FAST CHARGING
100% charged in 2.5 hours | Thanks to USB Type C connectivity it can be easily charged with standard USB cables and power supply units and even USB power banks.
SIMPLE AND STYLISH
Metal channel selector knob | metal mesh speaker | dual-shot injection molding & plating case
EXTENDED COMMUNICATION
Stay always connected with brand-new RF solution, 3W TX power and a RX sensitivity up to 0.18 μV
| General data | |
|---|---|
| Frequency Range | Ua: 400-440MHz Uc: 430-470MHz |
| Channel Capacity | 256 (128 analogue, 128 digital) |
| Zone Capacity | 8 (16 channels per zone) |
| Channel Spacing | 12.5 kHz/20 kHz/25 kHz |
| Operating Voltage | 3.8 V (rated) Li-Polymer |
| Battery | 2,200mAh Li-Polymer |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analogue: 10 hours Digital: 14 hours |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 158 mm x 55 mm x 24 mm (with antenna) |
| Weight | 135 g |
| Display | 0.9 inch OLED |
| BT | BT 5.0 BLE+EDR (hardware option) |
| Receiver | |
|---|---|
| Sensitivity(Analog) | 0.18 μV (12 dB SINAD) |
| Sensitivity(Digital) | 0.18 μV/BER5% |
| Adjacent Channel Selectivity | TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz |
| Intermodulation | TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 65 dB@12.5/20/25 kHz |
| Spurious Response Rejection | TIA-603: 70 dB@12.5/20/25 kHz; ETSI: 70 dB@12.5/20/25 kHz |
| Blocking | TIA-603: 80 dB; ETSI: 84 dB |
| Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz |
| Rated Audio Power Output | 0.5 W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1~-3 dB |
| Conducted Spurious Emission | <-57dBm |
| Transmitter | |
|---|---|
| RF Power Output | 1W / 3W |
| FM Modulation | 11K0F3E@12.5 kHz; 14K0F3E@20 kHz; 16K0F3E@25 kHz |
| 4FSK Digital Modulation | 12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW |
| Conducted/Radiated Emission | -36 dBm＜1 GHz; -30 dBm＞1 GHz |
| Modulation Limiting | ±2.5 kHz@12.5 kHz; ±4.0 kHz@20 kHz; ±5.0 kHz@25 kHz |
| FM Hum&Noise | 40 dB@12.5 kHz; 43 dB@20 kHz; 45 dB@25 kHz |
| Adjacent Channel Power | 60 dB@12.5 kHz; 70 dB@20/25 kHz |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2™ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Environmental Specs | |
|---|---|
| Operating Temperature | -20 ℃ to +50 ℃ |
| Storage Temperature | -40 ℃ to +85 ℃ |
| ESD | IEC 61000-4-2（Level 3） ±4kV (Contact) , ±8kV (Air) |
