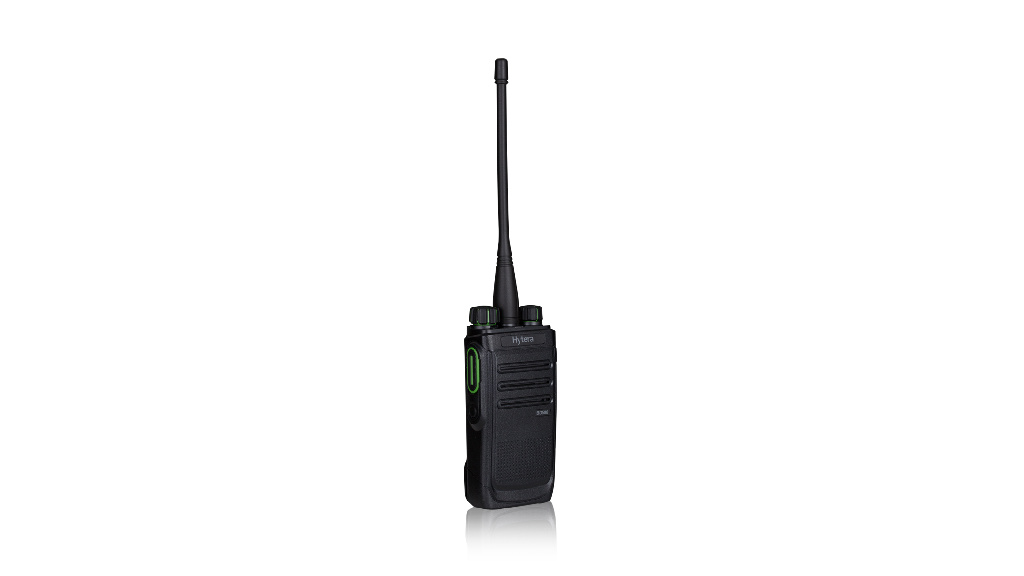

Hytera BD505 Business DMR Radio

Key Features

RUGGED AND RELIABLE

BD505 is designed and tested to meet Military Standards 810 C, D, E, F and G, including temperature shock, vibration, high & low temperature and humidity. IP54 dust- and water-proof design guarantees the reliability in different environments. Based on TDMA technology, the radio can work longer, up to 22 hours in digital mode.

CLEAR COMMUNICATION

With digital encoding and correction technology, human voice is transmitted much clearer without background noise, even from a rather far distance.This is a new experience of better audio quality.

CHANNEL ANNOUNCEMENT

This feature allows switching of channels to be quick and accurate even in adverse working conditions.

ANALOGUE & DIGITAL DUAL MODES

BD505 can support both analogue and digital modes on the same hardware. You can switch between two operation modes very easily and it helps you to communicate with analogue radios.

LONG BATTERY LIFE

Based on TDMA technology, BD505 in digital mode can work as long as 16 hours @ 1500mAh or 22 hours @2000mAh in 5-5-90 mode.

General data
Frequency Range	UHF:400-470 MHz; VHF:136-174 MHz
Channel Capacity	48
Zone Capacity	3
Channel Spacing	25 kHz/12.5 KHz
Operating Voltage	7.2 V
Battery	standard:1500 mAh(Li-ion); optional:2000 mAh(Li-ion)
Battey Life(5/5/90 Duty Cycle,High TX Power)	Analog:12 hours(1500 mAh),16 hours(2000 mAh); Digital:16 hours(1500 mAh),22 hours(2000 mAh);
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions(H×W×D) mm	108 mm × 54 mm × 29 mm
Weight	240 g
