Product Overview

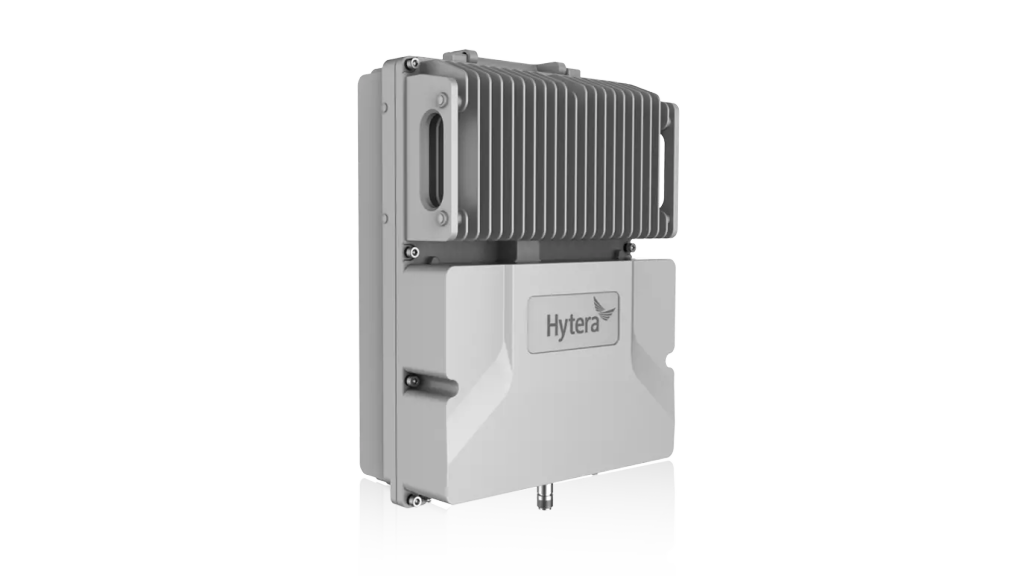

Hytera DS-9300 is a digital fibre bi-directional amplifier system for extending radio coverage. Donor and remote units support selective amplification between radio terminals and a base station. Select the frequency option and access-unit type for the installation.
Product Details
| Manufacturer | Hytera |
|---|---|
| Model | DS-9300 |
| Frequency options | 350–400 or 400–470 MHz; 5 MHz working bandwidth |
| RF connector | N female, 50 ohms |
| Protection | Cable-access donor: IP20; remote and wireless-access donor: IP65 |
| Supply | 220 VAC ±20%, 50 ±5 Hz |
| Dimensions by unit | Cable-access donor: 320 x 442 x 44 mm; wireless-access donor and remote: 385 x 300 x 142 mm (L x W x H) |
| Channel capacity | 1-16; configuration-dependent |
| System arrangement | Donor and remote units; cable-access or wireless-access donor options |
Request a Quote
Please specify your existing platform, device count, deployment environment and required functions. Hardware, software licences and implementation scope are confirmed in the quotation.
