Product Overview

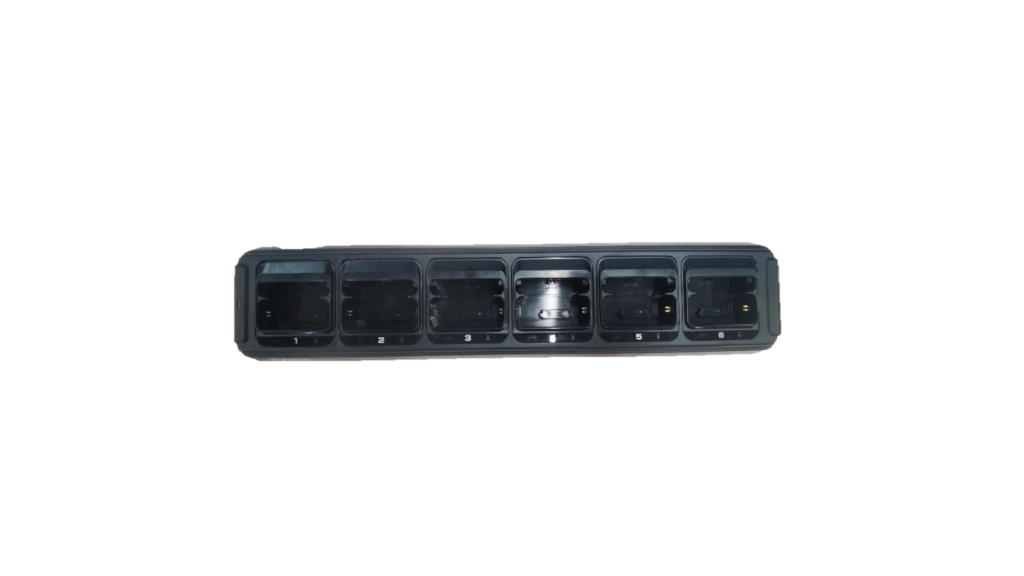

Hytera MCL36 is a multi-unit desktop charger. The manufacturer lists VM690 Pro. The 12 positions accommodate six devices and six batteries. PS7501 is included; specify UK or EU lead.
Key Features
- Charge current per pocket: 1400 mA (per pocket)
- Number of pockets: 12 units (6 devices and 6 batteries)
- Input: 12 V DC / 7 A
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | MCL36 |
| Supported battery type | Lithium-ion, Lithium-polymer battery |
| Dimensions (mm) | 488.0 x 107.8 x 44.2 |
| Weight | about 860 g |
| Charger type | multi-unit desktop charger |
| Charge current per pocket | 1400 mA (per pocket) |
| Number of pockets | 12 units (6 devices and 6 batteries) |
| Input | 12 V DC / 7 A |
| Operating temperature | 0°C to 45°C |
| Certification | CE and UKCA |
| Power adapter | PS7501 |
| Suitable devices | VM690 Pro |
| Power supply package | PS7501 included; select UK or EU version |
Compatibility and Configuration
Manufacturer-listed equipment or family: VM690 Pro. Confirm the exact version. VM690 Pro does not establish compatibility with other VM690 variants.
Ordering Information
Confirm the exact device and battery combination, charging arrangement, input supply, connector and supplied items before ordering. Maximum charging current does not establish charge time.
Request a Quote
Contact MARS SC about Hytera MCL36. Include the required device configuration, plug region and quantity.
