Product Overview

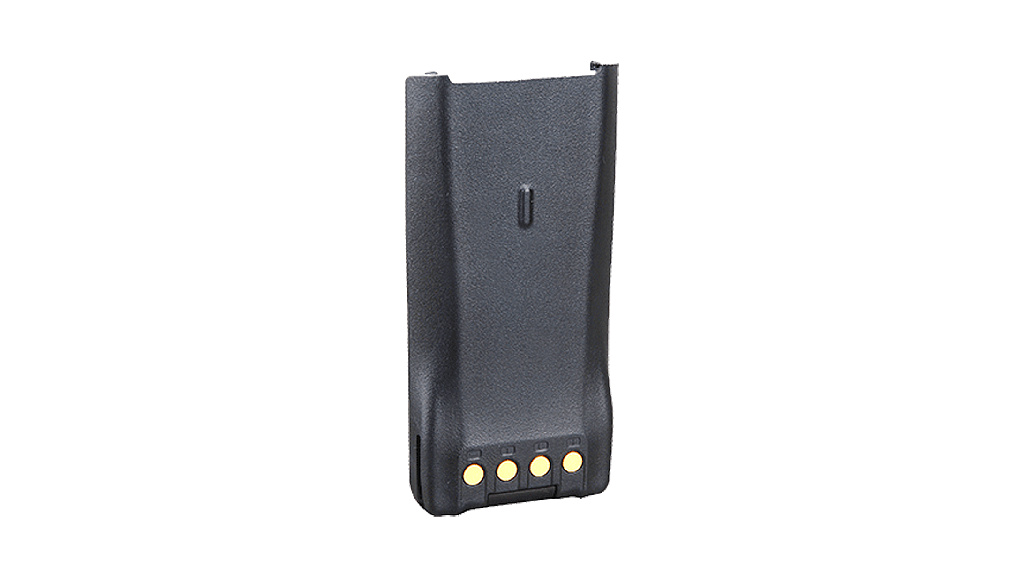

Hytera BL1806 is a 1800 mAh lithium-ion battery rated at 7.4 V. The official page lists PT560H, PT580H and PT580H Plus.
Key Features
- Nominal capacity: 1800 mAh
- Nominal voltage: 7.4 V
- Battery protection rating: IP67
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | BL1806 |
| Nominal Capacity | 1800 mAh |
| Nominal Voltage | 7.4 V |
| Dimensions(H×W×D) mm | 114.33 x 56.21 x 18.3 |
| Weight | about 115 g |
| Operating Temperature | 0°C to 45°C (charging) -20°C to 60°C (discharge) |
| Storage Temperature | -20°C to 60°C (for one month) -20°C to 45°C (for three months) -20°C to 25°C (for one year) |
| Battery Life Cycle | 500 times |
| IP Rating | IP67 |
| Suitable TETRA terminals | PT560H, PT580H, PT580H Plus |
Compatibility and Configuration
PT560H, PT580H and PT580H Plus as named on the accessory page. The Plus reference does not establish support for the UL913 version.
Ordering Information
Confirm the complete battery part number, exact radio version, nominal voltage, charging cradle and charging conditions before ordering. Capacity and appearance alone do not establish interchangeability. Support for PT580H Plus UL913 or an intrinsically safe configuration is not established by this page.
Request a Quote
Contact MARS SC about Hytera BL1806. Include your radio model, version and required quantity.
