Product Overview

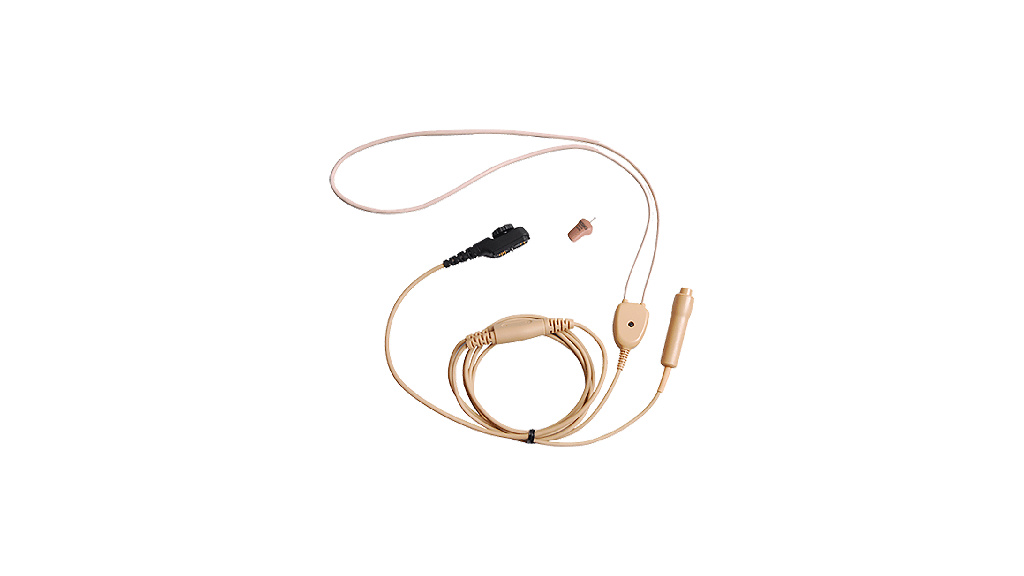

The Hytera EWN09 is a beige discreet-communication kit combining EWN10 and POA42, with a neck loop, microphone and PTT.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EWN09 |
| Weight | about 85 g |
| Color | beige |
| PTT Key | available |
| VOX | none |
| Emergency Key | none |
| Microphone Sensitivity | –32±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa |
| Speaker Power | 50 mW (rated); 100 mW (max.) |
| Speaker Impedance | 50 Ω±15% @ 1 kHz |
| Operating Temperature | –10℃ to 60℃ |
| Storage Temperature | –20℃ to 65℃ |
| Listed kit components | EWN10 neckloop and POA42 wireless earphone receiver |
Compatibility and Ordering
Confirm the EWN10 radio connection and POA42 receiver are included. Wireless here does not establish Bluetooth support; request the actual coupling method and any battery or operating requirements.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EWN09 configuration, host equipment and quantity required.
