Product Overview

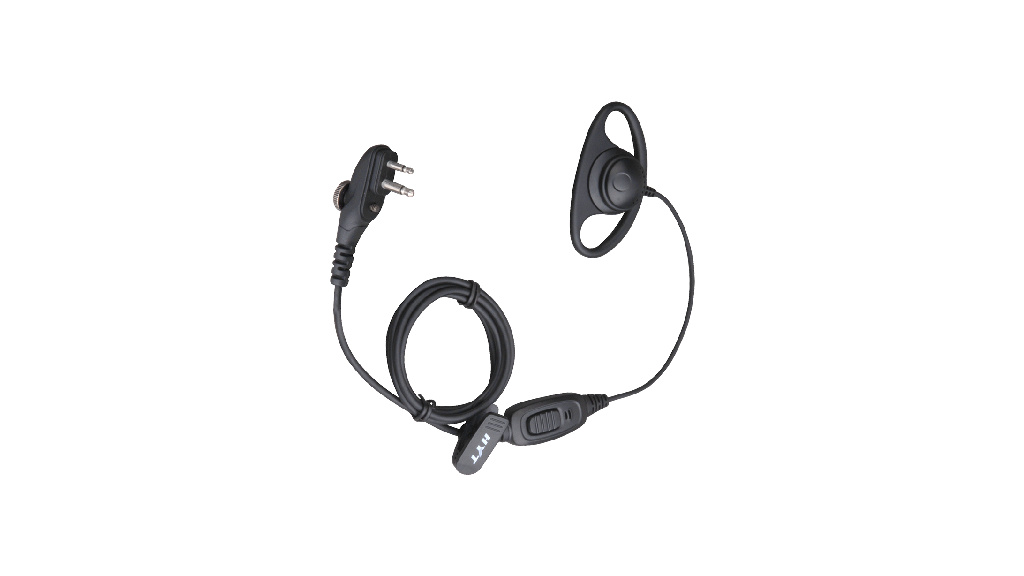

The Hytera EHM15 is a black D-style earpiece with an in-line microphone, PTT and listed VOX support.
Specifications
| Manufacturer | Hytera |
|---|---|
| Model | EHM15 |
| Weight | about 45 g |
| Color | black |
| PTT Key | available |
| VOX | supported |
| Emergency Key | none |
| Microphone Sensitivity | -38±3dB@1kHz 3.0V 2.2K,0dB=1V/Pa |
| Speaker Power | 50 mW (rated); 100 mW (max.) |
| Speaker Impedance | 32 Ω±15% @ 1 kHz |
| Operating Temperature | -20~60℃ |
| Storage Temperature | -40~75℃ |
Compatibility and Ordering
Confirm the host and VOX configuration. Keep EHM15 separate from EHM15-A: the manufacturer lists different impedance and microphone specifications for the two versions.
Acoustic Performance Documentation
For acoustic qualification, request a frequency-response curve and the measurement reference and test conditions. A single output-level value in dB does not specify a frequency-response bandwidth.
Request a Quote
Contact MARS SC with the exact EHM15 configuration, host equipment and quantity required.
