Product Overview

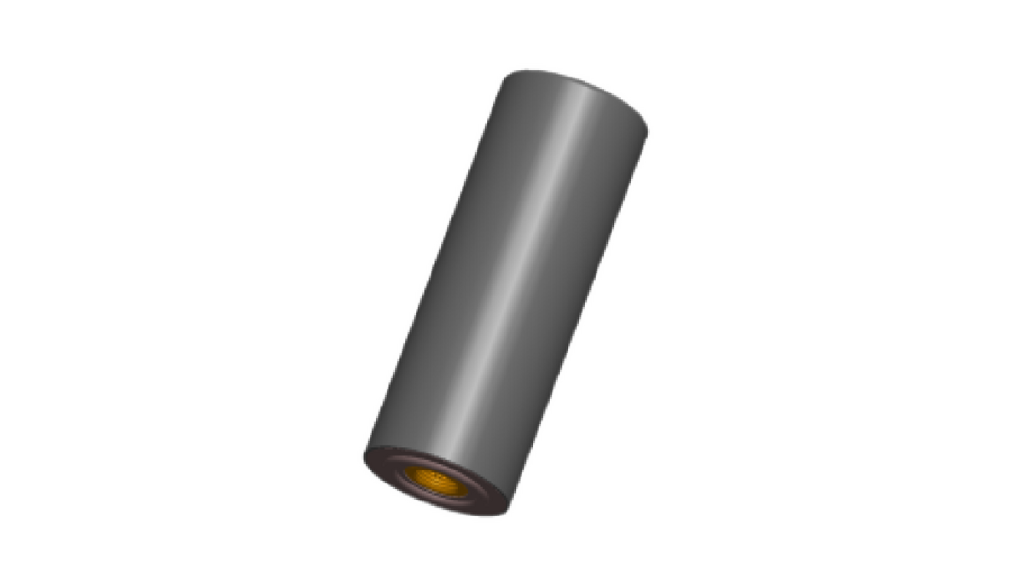

Hytera GPS06 is a Quadrifilar Helix GNSS Antenna. The listed frequency range is 1559MHz to 1606MHz. It supports Beidou II, GPS, GLONASS and GALILEO and is listed for HR655.
Key Features
- Frequency range: 1559MHz to 1606MHz
- Connector type: SMA
- Satellite Navigation Systems: Beidou II, GPS, GLONASS, GALILEO
- Operating Voltage: 3.0 to 16 V DC
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | GPS06 |
| Frequency range | 1559MHz to 1606MHz |
| Cable length | 50mm |
| Connector type | SMA |
| Satellite Navigation Systems | Beidou II, GPS, GLONASS, GALILEO |
| Operating Voltage | 3.0 to 16 V DC |
| Weight | about 11g |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -45°C to +85°C |
| Suitable radios | HR655 |
| Antenna designation (manufacturer description) | KBT-103A |
Compatibility and Configuration
Manufacturer-listed host models: HR655. Designed for HR655. Confirm the SMA interface and installation arrangement.
Ordering Information
Quote the exact product identifier and required configuration. Designed for HR655. Confirm the SMA interface and installation arrangement.
Request a Quote
Contact MARS SC with the required frequency band, host equipment and exact part number for GPS06.
