Product Overview

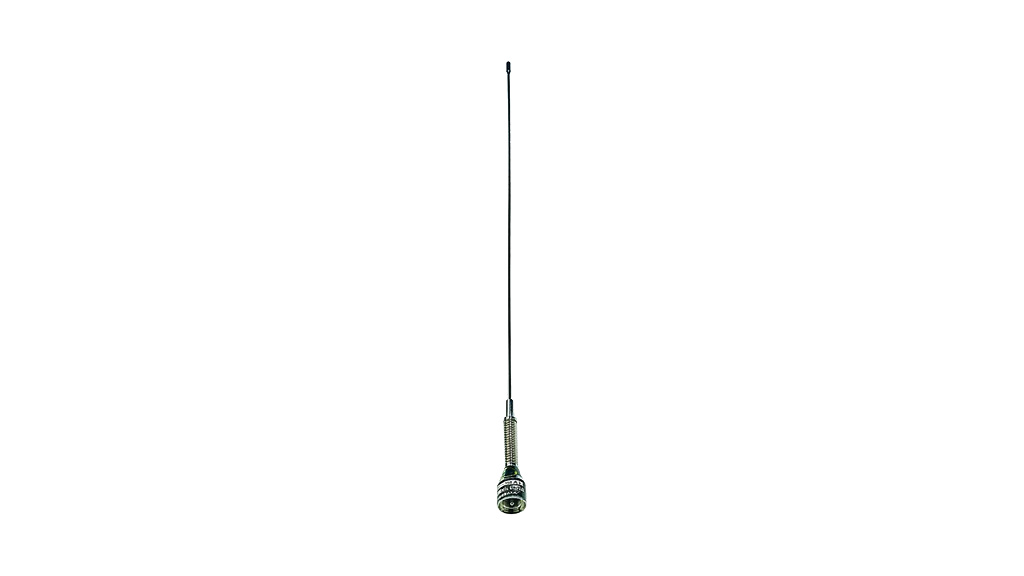

Hytera AN0163M03 is a VHF mobile antenna. The listed frequency range is 158-168MHz.
Key Features
- Frequency range: 158-168MHz
- Connector type: BNC (male)
- Gain: 2.15 dBi
- Max. recommended speed when using the M110 on vehicles: 80 km/h
- Cable length (page body): 3 m
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | AN0163M03 |
| Frequency range | 158-168MHz |
| Bandwidth | 10 Mhz |
| Connector type | BNC (male) |
| Gain | 2.15 dBi |
| Antenna type | TQC-150AII |
| Mount type | M110 magnetic mount |
| Max. recommended speed when using the M110 on vehicles | 80 km/h |
| Dimensions | 1.1 m |
| Material | Stainless steel |
| Suitable for | MD785, MD785G, MD785i, HM655, HM685, HM785 |
| Cable length (page body) | 3 m |
| VSWR (page body) | ≤2 |
Compatibility and Configuration
Manufacturer-listed models (not an exhaustive compatibility list): MD785, MD785i, HM655, HM685, HM785.
Ordering Information
Specify the exact model, operating band, radio variant and connector before ordering. 3 m cable and VSWR <=2 come from body; 1.1 m dimension and 2.15 dBi from specification table. M110 maximum recommended vehicle speed 80 km/h.
Request a Quote
Contact MARS SC with your radio model and required frequency band for AN0163M03.
