Product Overview

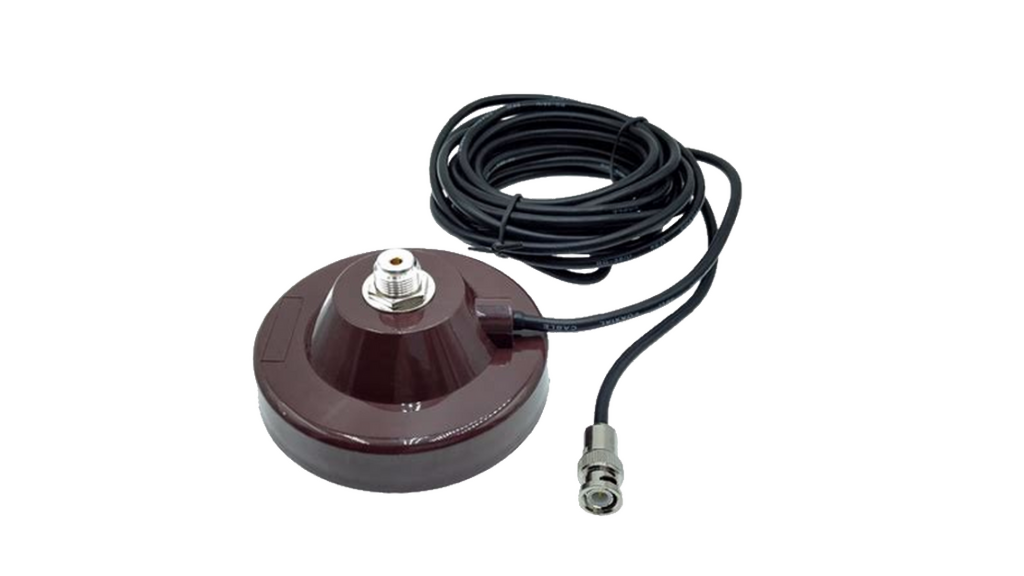

Hytera 32070000000759 – M110 is a magnetic antenna mount. It connects a PL-259 antenna plug to an SO-239 mount socket, with a 3 m cable ending in a BNC male plug.
Key Features
- Mount Connector: UHF female (SO-239)
- Cable Connector: BNC male
- Cable Length: 3 m
- Maximum recommended vehicle speed: 80 km/h
Key Specifications
| Manufacturer | Hytera |
|---|---|
| Model | 32070000000759 – M110 |
| Mount Connector | UHF female (SO-239) |
| Cable Connector | BNC male |
| Mount Dimensions | ø 110 mm x 50 mm |
| Weight | 0.76 kg |
| Cable Length | 3 m |
| Cable loss | ≤0.3 dB/m (0 – 500 MHz) ≤0.7 dB/m (500 – 1000 MHz) |
| Maximum recommended vehicle speed | 80 km/h |
| Antenna-side mating connection | PL-259 / UHF male antenna connection; confirm mechanical fit and antenna assembly |
Compatibility and Configuration
Confirm the exact host model and mounting or connector configuration.
Ordering Information
Specify the exact model, operating band, radio variant and connector before ordering. Mount with 3 m cable, not a complete antenna. SO-239 is mount-side and BNC male is cable-side. Manufacturer recommends maximum vehicle speed 80 km/h.
Request a Quote
Contact MARS SC with your radio model and required frequency band for 32070000000759 – M110.
