Product Overview
The EG8145X6-10 integrates an optical network terminal and Wi-Fi router for a GPON service. It is suited to projects that need fiber termination, local Ethernet, wireless access and a provisioned voice service in one device. Select it together with the ISP or network operator so that activation and service profiles are agreed before installation.
Key Features
- Fiber and local networking together: GPON access, Wi-Fi 6 and four Gigabit Ethernet ports in one ONT.
- Dual-band Wi-Fi 6: 2 x 2 MIMO and documented support for 160 MHz channel bandwidth; operation depends on the regional configuration and clients.
- Voice interface: one POTS port for an operator-provisioned telephone service.
- Service-provider deployment: confirm OLT interoperability, authentication and VLAN/service profiles before a replacement or rollout.
Specifications
| Brand | Huawei |
|---|---|
| Model | EG8145X6-10 |
| Product family | OptiXstar |
| Product type | GPON ONT |
| Access standard | GPON |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Wi-Fi bands | 2.4 + 5 GHz |
| Interfaces | 4x GE + 1x POTS + 1x USB |
| SIM / external antenna | No SIM |
| Region / variant | International / Huawei Enterprise |
| Wi-Fi radio configuration | 2 x 2 MIMO; up to 160 MHz channel bandwidth |
| Dimensions (H x W x D) | 35 x 195 x 125 mm, excluding external antennas and pads |
| Weight | Approximately 372 g |
| Power supply | 11-14 V DC / 1.5 A |
| Maximum power consumption | 18 W |
| Operating temperature | 0 to 40 degrees C |
Specifications describe the referenced model. Confirm the supplied hardware and firmware for the destination network. Wireless rates are theoretical link rates, not guaranteed internet throughput.
Applications
- Residential FTTH: combine fiber termination with wired and wireless access in the home.
- Small-office fiber: connect several wired devices alongside Wi-Fi clients.
- ISP replacement and rollout projects: evaluate a sample on the target OLT and service profiles before a larger deployment.
Before You Order
For a useful compatibility check and quotation, include:
- GPON access service, OLT vendor/model and relevant software version.
- Operator approval, supported ONT authentication method and OMCI/service-profile requirements. Share the method needed, not account passwords.
- Internet VLAN, bridge/routing requirements and any provisioned voice or IPTV service.
- Quantity, destination, required firmware, optical connection requirements and power-plug type.
Discuss your EG8145X6-10 requirements
Frequently Asked Questions
Can it replace any fiber modem?
No. GPON support alone does not establish interoperability. The operator must accept the ONT and provision the correct authentication and service profiles.
Can I use a SIM card?
No. The network uplink is GPON fiber, not a cellular modem.
Does the telephone port work immediately?
The POTS port requires a configured voice service. Having the connector does not itself activate a telephone account.
Is this an XGS-PON or multi-gigabit Ethernet model?
No. This model is documented with GPON and four Gigabit Ethernet ports. For a different access standard or faster Ethernet, select a model specified for that requirement.
Product Reference

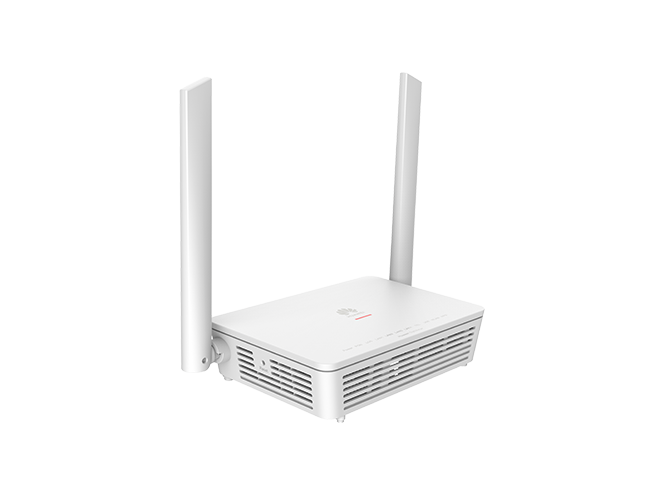

Manufacturer product information. Official product imagery is illustrative; supplied units may vary by regional version.
