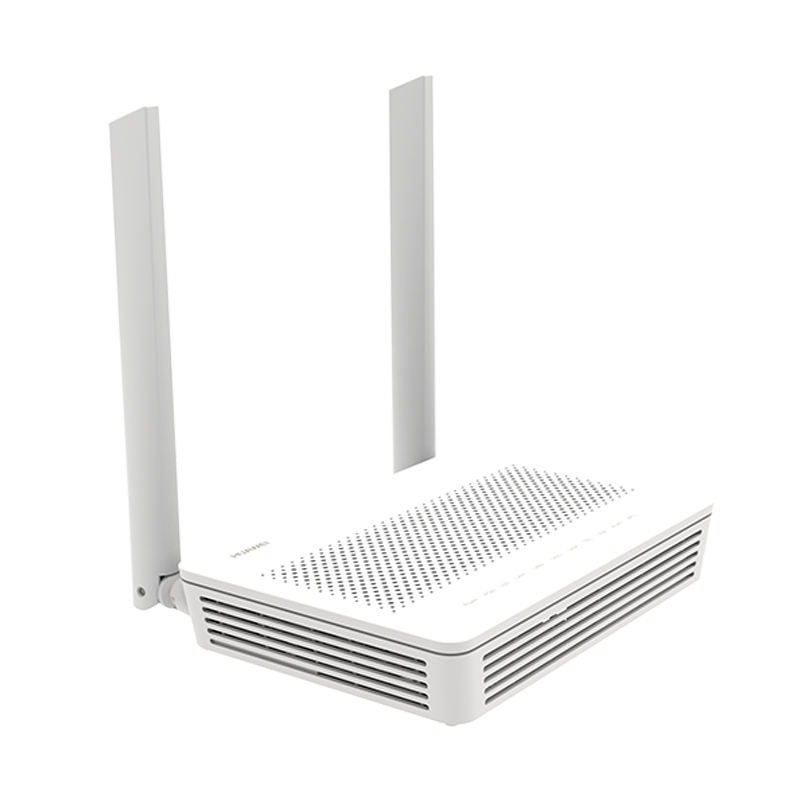

Product Overview
Select the EG8145V5 for a conventional dual-band GPON home or small-office network. Its GPON uplink terminates the fiber service, while four GE ports, one POTS port and one USB port determine how local equipment connects. Wireless access operates on 2.4 GHz and 5 GHz.
Key Features
- Optical access: GPON, to be qualified on the target OLT and operator service profile.
- Local connections: four GE ports, one POTS port and one USB port.
- Wireless planning: Wi-Fi 5 for compatible local clients; coverage depends on placement, building materials and client capability.
- Selection detail: It combines GPON termination and dual-band Wi-Fi 5. A separate router or access point may still be appropriate for coverage or a specific network design.
Specifications
| Brand | Huawei |
|---|---|
| Model | EG8145V5 |
| Product family | EchoLife |
| Product type | GPON ONT |
| Access standard | GPON |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Wi-Fi bands | 2.4 + 5 GHz |

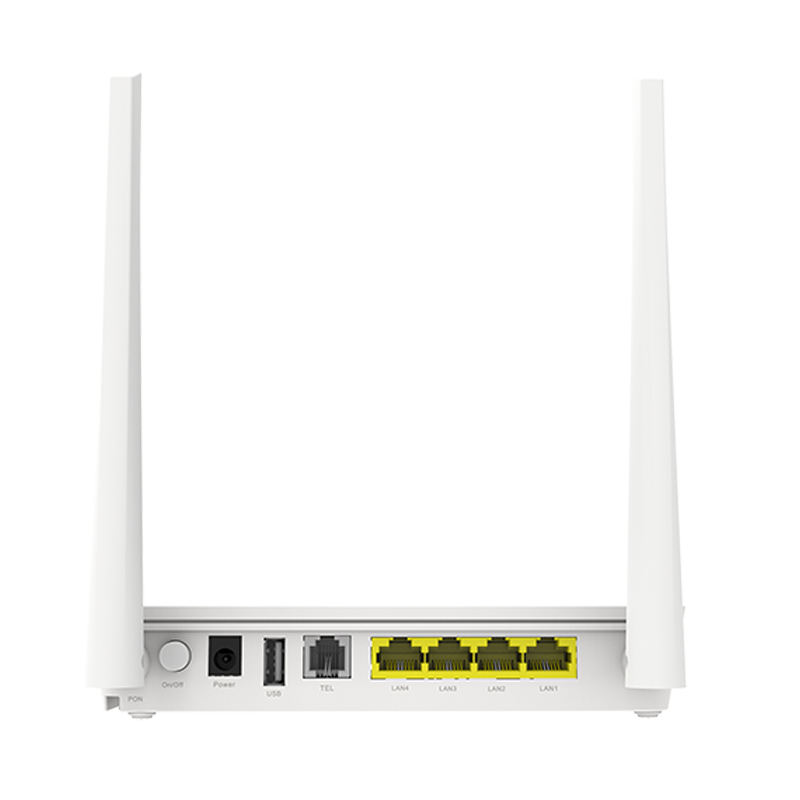

| Interfaces | 4x GE + 1x POTS + 1x USB |
| SIM / external antenna | No SIM |
| Region / variant | International / Huawei Enterprise |
Specifications describe the referenced model. Confirm the supplied hardware and firmware for the destination network. Wireless rates are theoretical link rates, not guaranteed internet throughput.
Additional Technical Specifications
| Model | EchoLife EG8145V5 |
| Dimensions (H x W x D) (without external antenna and pads) | 30 mm x 155 mm x 105 mm |
| Weight | About 220 g |
| NNI | GPON |
| Optical connector | SC / APC |
| UNI | 1POTS+4GE+2.4GHz / 5GHz Wi-Fi+1USB |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50 / 60 Hz |
| System power supply | 12 V DC, 1.5 A |
| Static power consumption | 5 W |
| Maximum power consumption | 12 W |
| Indicators | Power / PON / LOS / LAN1 / LAN2 / LAN3 / LAN4 / TEL / USB / WLAN / WPS |
| GPON port | • Class B+ • Receiver sensitivity: -27dBm • Overload optical power: -8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing&dual-homing) |
| POTS port | • Maximum ringer equivalence number (REN): 4 • G.711A / μ, G.729a / b and G.722 encoding / decoding • T.30 / T.38 / G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| Ethernet port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit / s, 100 Mbit / s or 1000 Mbit / s |
| Wi-Fi | • IEEE 802.11 b / g / n (2.4GHz) • IEEE 802.11 a / n / ac (5GHz) • 2 × 2 MIMO (2.4GHz&5GHz) • Antenna gain: 5 dBi • WMM / Multiple SSIDs / WPS • 2.4GHz&5GHz concurrent • Air interface rate: 300 Mbit / s (2.4GHz), 867 Mbit / s (5GHz) |
Applications
- Project fit: A conventional dual-band GPON home or small-office network.
- Operator rollouts: qualify a sample on the intended OLT, authentication method and service profiles before ordering a deployment quantity.
- Replacement planning: match both optical access and local interfaces, then arrange operator approval before swapping an existing ONT.
Before You Order
For a useful compatibility check and quotation, include:
- GPON service, OLT vendor/model and software version.
- ONT registration method, OMCI requirements, VLANs and bridge/routing design; do not send account passwords.
- Required wired link speeds, wireless coverage and any provisioned voice or TV service.
- Quantity, destination, firmware requirements, optical connector and power-plug type.
Discuss your EG8145V5 requirements
Frequently Asked Questions
Does it require a separate Wi-Fi router?
It combines GPON termination and dual-band Wi-Fi 5. A separate router or access point may still be appropriate for coverage or a specific network design.
Can it replace any fiber modem?
No. GPON support alone does not establish interoperability. The operator must accept the ONT and apply the correct authentication and service profiles.
Does the interface speed guarantee internet throughput?
No. Port rates and wireless link rates are not guaranteed internet speeds. The service plan, provisioning, network load and connected equipment all matter.
Is telephone service ready as soon as it is connected?
The POTS interface requires an operator-provisioned voice service. Confirm the voice profile and supported firmware before deployment.
Product Reference
Manufacturer product information. Product illustrations are reference images; supplied hardware and regional versions should be confirmed before ordering.
