Product Overview
Choose the B535-232a when your site needs SIM-based internet and several wired connections. It combines an LTE modem, Wi-Fi access point and Ethernet router in one unit, reducing the equipment needed for a small network. It can also use an Ethernet internet connection through its LAN/WAN port.
Key Features
- Connect wired equipment: one Gigabit LAN/WAN port and three Gigabit LAN ports serve computers, switches or other Ethernet devices.
- Share 4G over Wi-Fi: dual-band Wi-Fi 5 supports everyday home and small-office connectivity.
- Plan for signal reception: two SMA LTE antenna connectors allow a compatible external antenna installation; antennas and cabling must match the site and bands.
- Keep the model specific: this page covers B535-232a. Other B535 variants may have different bands and telephone interfaces.
Specifications
| Brand | Huawei |
|---|---|
| Model | B535-232a |
| Product family | B535 |
| Product type | 4G LTE Router |
| Access standard | LTE Cat 7 |
| LTE bands | B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38 |
| 3G / legacy cellular | UMTS B1/B8 |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Wi-Fi bands | 2.4 + 5 GHz |
| Interfaces | 1x GE LAN/WAN + 3x GE LAN |
| SIM / external antenna | Nano-SIM + 2x SMA LTE |
| Region / variant | Europe / International |
| LTE peak data rate | 300 Mbps download / 100 Mbps upload (theoretical) |
| Wi-Fi link rates | 2.4 GHz: up to 400 Mbps; 5 GHz: up to 867 Mbps (theoretical) |
Specifications describe the referenced model. Confirm the supplied hardware and firmware for the destination network. Wireless rates are theoretical link rates, not guaranteed internet throughput.
Applications
- Home or small office: share a suitable mobile data plan across Wi-Fi and Ethernet devices.
- Temporary premises: connect a staffed indoor site while fixed-line installation is pending.
- Secondary internet connection: consider it as an additional WAN source for a separate network design; automatic failover must be verified for the actual configuration.
Before You Order
For a useful compatibility check and quotation, include:
- Destination country, mobile operator and required LTE bands.
- SIM restrictions, APN and whether a public IP or remote access is required.
- Number of wired devices, external antenna requirements and installation location.
- Quantity, required delivery date, power-plug type and firmware requirements.
Discuss your B535-232a requirements
Frequently Asked Questions
Does B535-232a support 5G?
No. This is a 4G LTE model. For a 5G deployment, compare the H122-373 and first confirm local network support.
Can it connect to an existing Ethernet internet service?
Yes, through the LAN/WAN port. Three dedicated LAN ports remain for wired devices when that port is used for WAN.
Is 300 Mbps a guaranteed internet speed?
No. It is a theoretical LTE peak. Signal quality, the operator network, data plan and network load determine actual throughput.
Does it work with any SIM?
Check the exact unit and carrier configuration. Matching bands alone does not confirm SIM acceptance, firmware support or network access.
Need 5G and Wi-Fi 6? Compare Huawei H122-373.
Product Reference

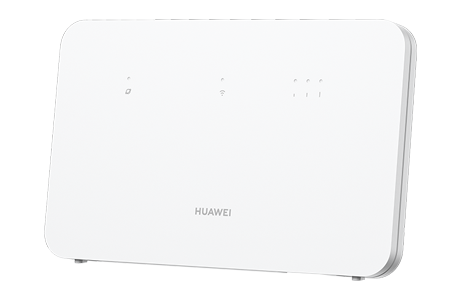

Manufacturer product information. Official product imagery is illustrative; supplied units may vary by regional version.
