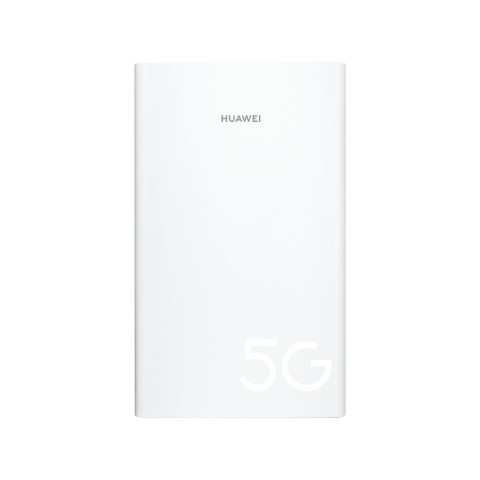

HUAWEI 5G CPE Win

• White

Communication Standard: 3GPP Release 15

Applicable Network: 5G/4G

Network Mode: NSA / SA
*SA capabilities depend on the available network and software version, which need to be customized.

5G Transmission Rate: 1.65Gbps / 250Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

4G Transmission Rate: 1.6Gbps / 150Mbps (Theoretical value. The peak rate depends on the operator and the Ethernet port)

Wireless Frequency Band: 2.4GHz, only for installation and configuration, not for internet access

5G / 4G Antenna Type: 5G / 4G main and diversity antennas

WLAN Antenna Type: Built-in 2.4GHz Wi-Fi antenna

CPU: Balong 5000 chipset

1 GE Lan port, 1 SIM card slot (Nano-SIM)

Reset

5G / 4G indicator

Power: < 24W

AC / DC Power Supply: AC: 100V – 240V 50Hz / 60Hz, DC: 19V / 1.26A

HUAWEI AI Life App

Mobile network (5G / 4G) access, Ethernet access, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel / VPN penetration, IPv6 and IPv6 / IPv4 dual stack, multi-APN, WebUI, HOTA, etc

Temperature:Operating temperature: -40 °C ~ 55 °C (no solar radiation) , storage temperature: -40 °C ~ + 70 °C

Humidity: 5% ~ 95% (non-condensing)

HUAWEI 5G CPE Win: 1 (standard configuration)
PSU: 1 (standard configuration)
PSU power cable: 1 (standard configuration)
Ethernet Cable: 1 (standard configuration)
Base: 1 (standard configuration)
Adjustable pole strap: 1 (standard configuration)
Nameplate: 1 (standard configuration)
Internal hexagon wrench: 1 (standard configuration)
Screw: 4 (standard configuration)
Expansion anchor: 4 (standard configuration)
Quick Start: 1 (standard configuration)
Warranty Card: 1 (optional)
