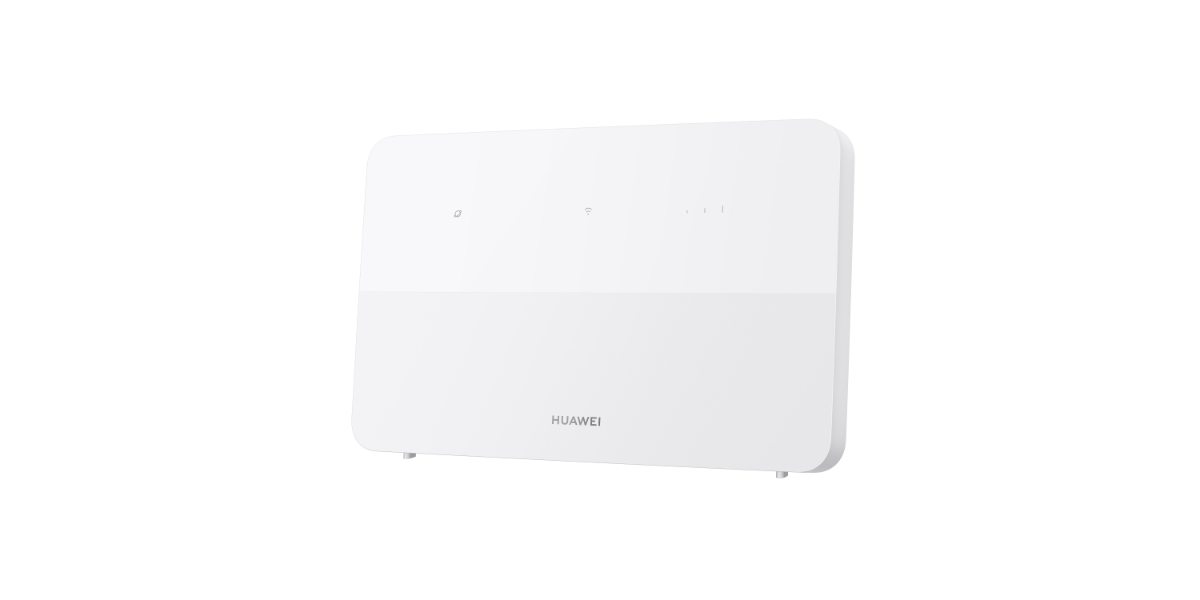

HUAWEI 4G CPE 5

198 mm

125 mm

27.9 mm

Note: The size may vary depending on configuration, manufacturing process, or measurement.

Approximately 305 g (excluding the power adapter)

Note: The size may vary depending on configuration, manufacturing process, or measurement.

Max. DL: 400 Mbps

Max. UL: 200 Mbps

Note: Theoretical value. The actual rate varies with the operator, network conditions, distance, and terminal type.

Wi-Fi 6

2.4 GHz: 574 Mbps (theoretical value)

5 GHz: 2400 Mbps (theoretical value)

2.4 GHz、5 GHz

Built-in 3G/4G antennas, external antennas can be removable

Built-in dual-band Wi-Fi antenna, non-removable

Hisilicon Balong

LPDDR4X: 256 MByteNAND

Flash: 256 MByte

External antenna ports (SMA): 2

LAN/WAN port (RJ45, GE): 1

LAN port (RJ45, GE): 3

Power port: 1

Nano-SIM card slot: 1

Voice port (RJ11): 1

WPS button: 1

Reset button: 1

Internet status indicator: 1

Wi-Fi indicator: 1

Signal strength indicator: 1

< 12 W

AC: 100V～240V

DC: 12V/1A

APP: HUAWEI AI Life APP (Android) , HUAWEI Smart Home APP (iOS)

Anti-brute Force Cracking:

Supported

Firewall:

Supported

DoS Attack Protection:

Supported

Wi-Fi Encryption Authentication:

Supported, WPA2-PSK, WPA3-SAE, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE

Operating Temperature: 0℃～40℃

Storage Temperature: -20℃～+70℃

CPE: 1 (Standard)

Quick start guide: 1 (Standard)

Power adapter: 1 (Standard)

Ethernet cable: 1 (Optional)

Telephone cable: 1 (Optional)

Warranty: 1 (Optional)

External antennas: 2 (Optional)
